Goodyear

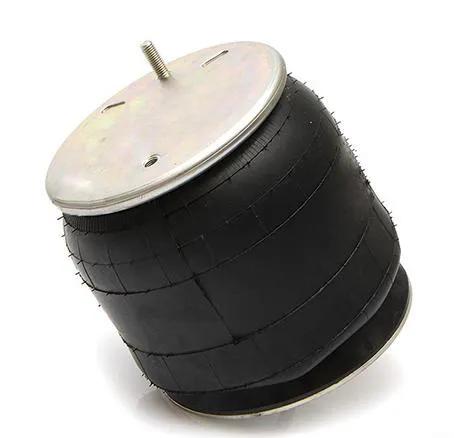

GOODYEAR AIR SPRING
#ARB1R12-636
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-9634, ContiTech 9 10-14 A 575
Specifications
Air Spring Type | Rolling Lobe |
Bead Plate (Top) Mounting Bolts Dimension Center to Center | 6-13/64 in (15.75 cm) |
Bellows | Automann 1DK23I, Firestone 1T15M-4/1T15VP-4, Goodwill 566243004, Contitech 9 10-13.5/9 10-14, Triangle 6362/85/88 |
Bottom Plate Alignment | Parallel |
Bottom Plate Diameter | 9-51/64 in (24.89 cm) |
Bottom Plate Hole Stud Qty | 1 |
Bumper | No |
Compressed Length | 5-19/64 in (13.46 cm) |
Contitech Bellow # | 9 10-13.5/9 10-14 |
Firestone Bellows Number | 1T15M-4/1T15VP-4 |
Goodyear Bellow # | 566243004 |
Height | 14-1/2 in (36.83 cm) |
Length | 10-1/2 in (26.67 cm) |
Maximum Height | 17-3/32 in (43.41 cm) |
Plate Type | Composite |
Quantity | 1 |
Top Plate Diameter | 9 in (22.86 cm) |
Top Plate Hole Count | 2 |
Triangle Bellows Number | 6362/85/88 |
Type | Rolling Lobe Air Springs |
Weight | 18.5 lb (8.39 kg) |
Width | 10-1/2 in (26.67 cm) |
