Goodyear

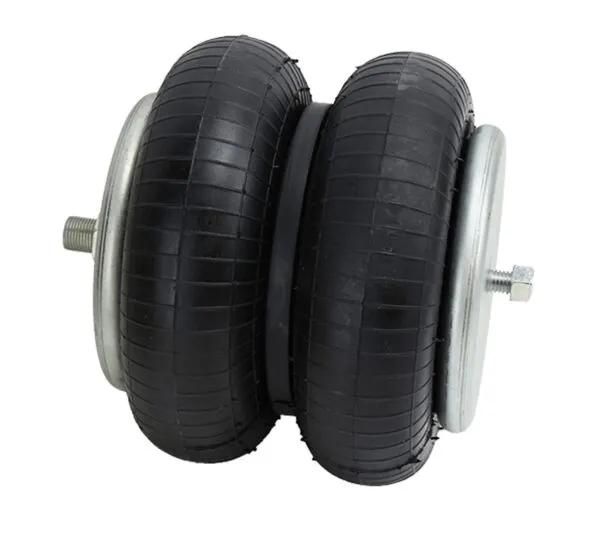

GOODYEAR AIR SPRING
#ARB2B9-229
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-6897, ContiTech FD 200-19 505, Fleetride 2B9-490, Watson & Chalin AS-0058
Specifications
| Air Spring Type | Double Convoluted |
| Bellows | Automann SP2B12R, Firestone 20F was 20, Goodwill 578923211, Contitech FD 200-19, Triangle 6325 |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 6-13/32 in (16.28 cm) |
| Bottom Plate Hole Stud Qty | 1 |
| Bumper | No |
| Compressed Length | 3-13/64 in (8.13 cm) |
| Contitech Bellow # | FD 200-19 |
| Firestone Bellows Number | 20F was 20 |
| Goodyear Bellow # | 578923211 |
| Height | 9 in (22.86 cm) |
| Length | 12 in (30.48 cm) |
| Maximum Height | 10-19/64 in (26.16 cm) |
| Quantity | 1 |
| Top Plate Diameter | 6-13/32 in (16.28 cm) |
| Top Plate Hole Count | 1 |
| Triangle Bellows Number | 6325 |
| Type | Bellows Air Spring |
| Weight | 8 lb (3.63 kg) |
| Width | 12 in (30.48 cm) |
