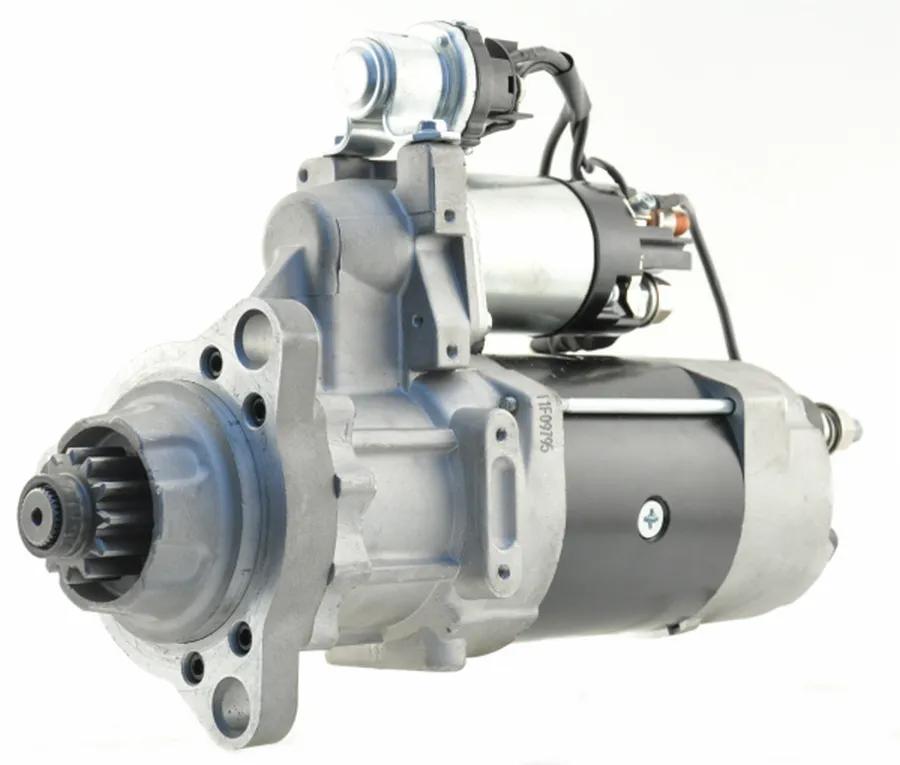

Starter 39MT, Remanufactured, V: 12, Teeth: 12, PGR
#WIL91-01-4760N
Product Overview
We Offer a Full Line of All Makes Electrical Components for Most Any Heavy Duty Application. Our Electrical Components Are Remanufactured to Exacting Specifications in State of the Art Facilities, & 100% Tested for Reliability.
Specifications
| Application | MD/HD TRUCK |
| Contents | (1) Starter Assembly |
| Flange Type | SAE J542 Type 3 |
| GND Stud | Yes |
| Ground Terminal | M12X1.75 |
| Has OCP (Over Crank Protection) | No |
| Helper Relay | 45 |
| Housing Coating | Raw |
| Ignition Terminal | M5 |
| IMS | Yes |
| KW Rating | 7.2 Kw |
| Model | 39MT |
| Mount Hole 1 (MM) | 35/64 in (1.4 cm) |
| Mount Hole 2 (MM) | 35/64 in (1.4 cm) |
| Mount Hole 3 (MM) | 35/64 in (1.4 cm) |
| Mount Type | SAE 3 |
| Note | Rotatable de Housing |
| Number of Mount Holes | 3 |
| Number of Teeth | 12 |
| OCP | No |
| Over Crank Protection | Yes |
| Packaging | Boxed |
| Pallet Quantity | 32 |
| Pinion OD | 1-27/32 in (4.67 cm) |
| Pinion Pitch | 8/10 |
| Polarity | Insulated |
| Rotation | CW-Clockwise |
| Solenoid Position | 82 deg |
| Span over 2 teeth | 15.59 V, 15.68 V |
| Teeth | 15/32 in (1.19 cm) |
| Tooth Count (MM) | 12 - 46 diameter gear |
| Type | PGR-Planetary Gear Reduction |
| UL Approved | No |
| Unit Pack | 1 |
| Weight | 33 lb (14.97 kg) |
| Wetclutch | Yes |
Interchanges & Equivalent parts:
85103338, ABP N15 39MT433, RE91-01-4760N, STA6907, FLTST3903, 91014760N, STR4295, 2071788, 21045969, 2562441, 3554533, 8200058, 8200182, 8200470, 8200610, F-042-003-071, 91-01-4760N, F042003071, 5367758, 2071788, 8200610, 5367758, F042003071, 8200182, 21045969, 3554533, 2562441, 85103338, STA6907, ABP N15 39MT433, RE91-01-4760N, 8200182, 3554533, 8200058, F-042-003-071, 21045969, 2562441, 8200470, 2071788, 8200610, FLTST3903, 91014760N, STR4295, 91-01-4760N, ABPN1539MT433, ABPN1539MT433, RE91014760N
