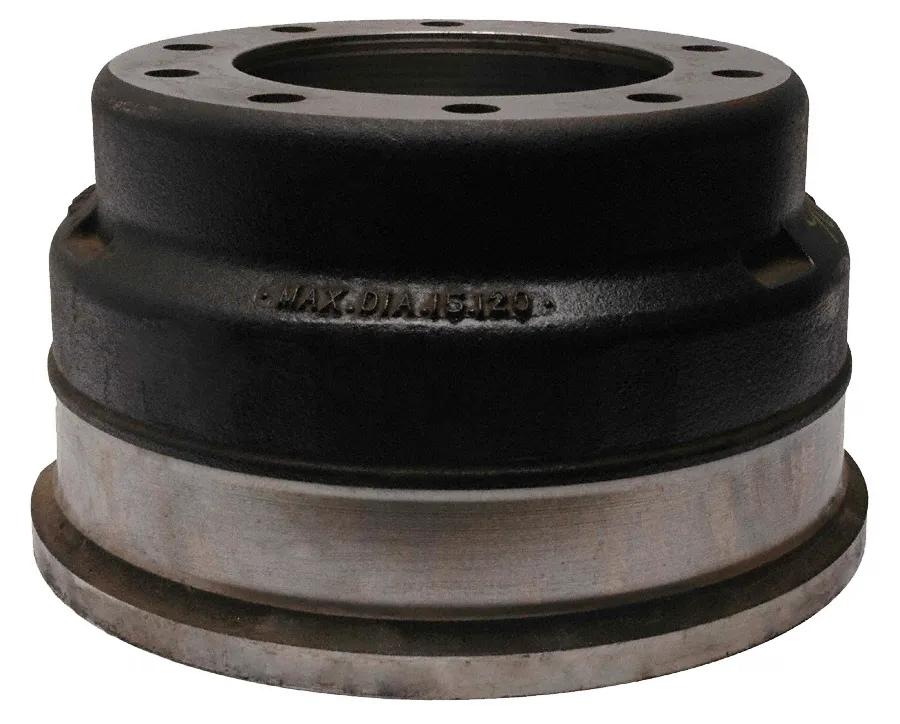

Brake Drum, 15 in x 5 in, 10 holes, (86 lb)
#GUN3754X
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
Aftermarket Status | Active |
Axle Location | Steer Axle |
Balanced or Unbalanced | Balanced |
Bolt Circle Diameter | 11.25 |
Bolt Circle Diameter (in.) | 1 in. |
Bolt Hole Size | 1 |
Brake Size | 15.00x4.00 |
Brake Surface Diameter | 15.00 in. |
Brake Surface Width | 5.94 in. |
Brake Surface Width (E) | 5.94 |
Drum Mount | Outboard |
Drum Type | BDC |
Dust Shield Recess Depth (C) | 0 |
Dust Shield Recess Diameter (B) | 0 |
Finished Weight | 86 lb |
Inside Finished Diameter (O) | 12.88 |
Maximum Wear Diameter | 15.12 |
Mounting Flange Diameter (F) | 13.28 |
Mounting Flange Thickness (L) | 0.5 |
Number of Bolt Holes | 10 |
Outside Sidewall Diameter (M) | 16.1 |
Overall Depth | 9.52 in. |
Overall Depth (G) | 9.52 |
Overall Diameter (A) | 17.4 |
Packaging | Individual / Bulk |
Pilot Diameter | 8.78 in. |
Sidewall Offset (N) | 3.76 |
Spoke, Disc or Spoke/Disc | Disc |
Squealer Band Width (K) | 0.92 |
Wheel Type | Disc |
