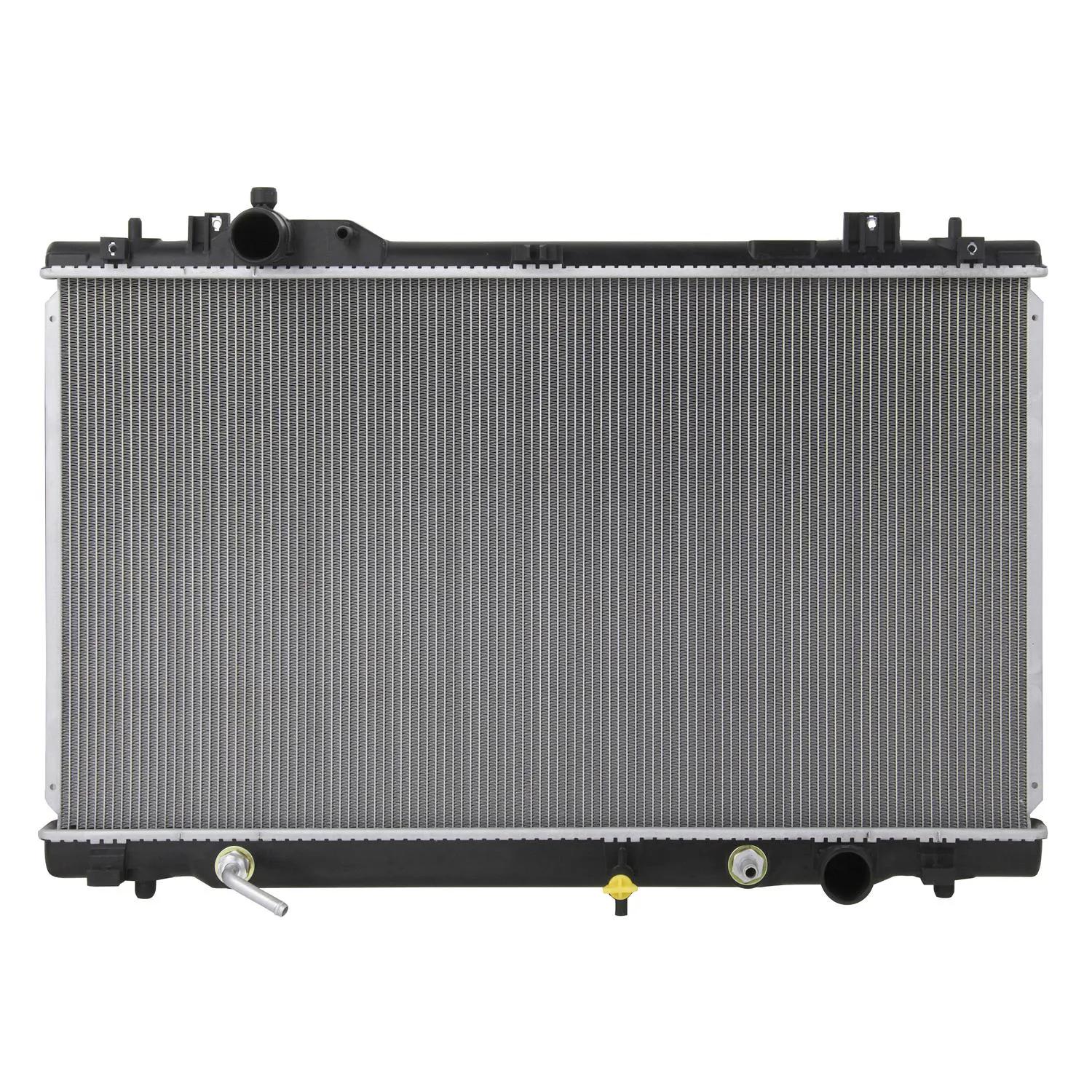

Complete Radiator

#SPECU13096

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 13096, 103493, 2540, 1640038H30, 1640038220, CU13096, 2942, C13096, 0ATY5998, 8013096, 2219199, A13096, RAD13096

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Downflow
Height (in.) 15.6875
Inlet Diameter (in) 1-1/2 in.
Length (in.) 28.0625
Number of Rows 1
Outlet Diameter (in) 1.5
Radiator Inlet Header Size 2 5/16 in. x 29 1/8 in.
Radiator Make Lexus
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 7 Plates 14 3/4 in.
Radiator Outlet Connector Size 1 1/2 in.
Radiator Core Size 15-11/16 in. x 28-1/16 in. x 1 in.
Radiator Inlet Connector Size 1 1/2 in.
Radiator Outlet Header Size 2 5/16 in. x 29 3/8 in.
Transmission Oil Cooler Size 7 Plates 14-3/4 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets To Increase Unit Durability And Improve Ease Of Installation
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
