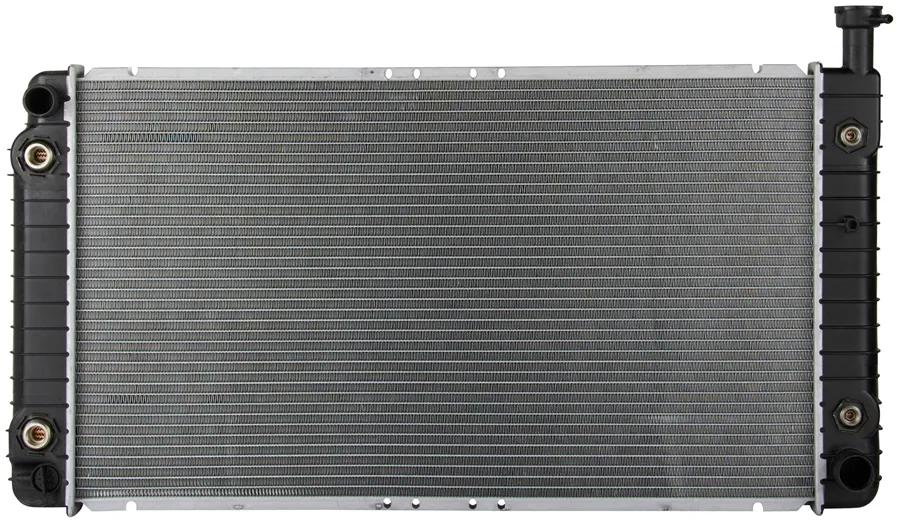

Complete Radiator

#SPECU2042

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 21402, 431422, 15762434, 0AGM5828, RAD2042, GM3010304, A2042, 2703, 9557, 40595, 9556, REA412042A, 2484, 52475990, 52477274, 2042, 2040, 52475986, 1489, OR2042, CU2042, C2042, 8012042, 2219113, 412042, 438178, 9557A

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 30.5
Inlet Diameter (in) 1-5/16 in.
Length (in.) 17.25
Number of Rows 1
Outlet Diameter (in) 1.5625
Radiator Inlet Header Size 2 1/2 in. x 18 3/4 in.
Radiator Make Chevrolet / GMC
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 4 Plates 11 1/2 in. 4 Plates 11 1/2 in.
Radiator Outlet Connector Size 1 9/16 in.
Radiator Mount Type Saddle Mount
Radiator Core Size 30-1/2 in. x 17-1/4 in. x 1-1/4 in.
Radiator Inlet Connector Size 1 5/16 in.
Radiator Outlet Header Size 2 1/2 in. x 18 3/4 in.
Transmission Oil Cooler Size 4 Plates 11-1/2 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
