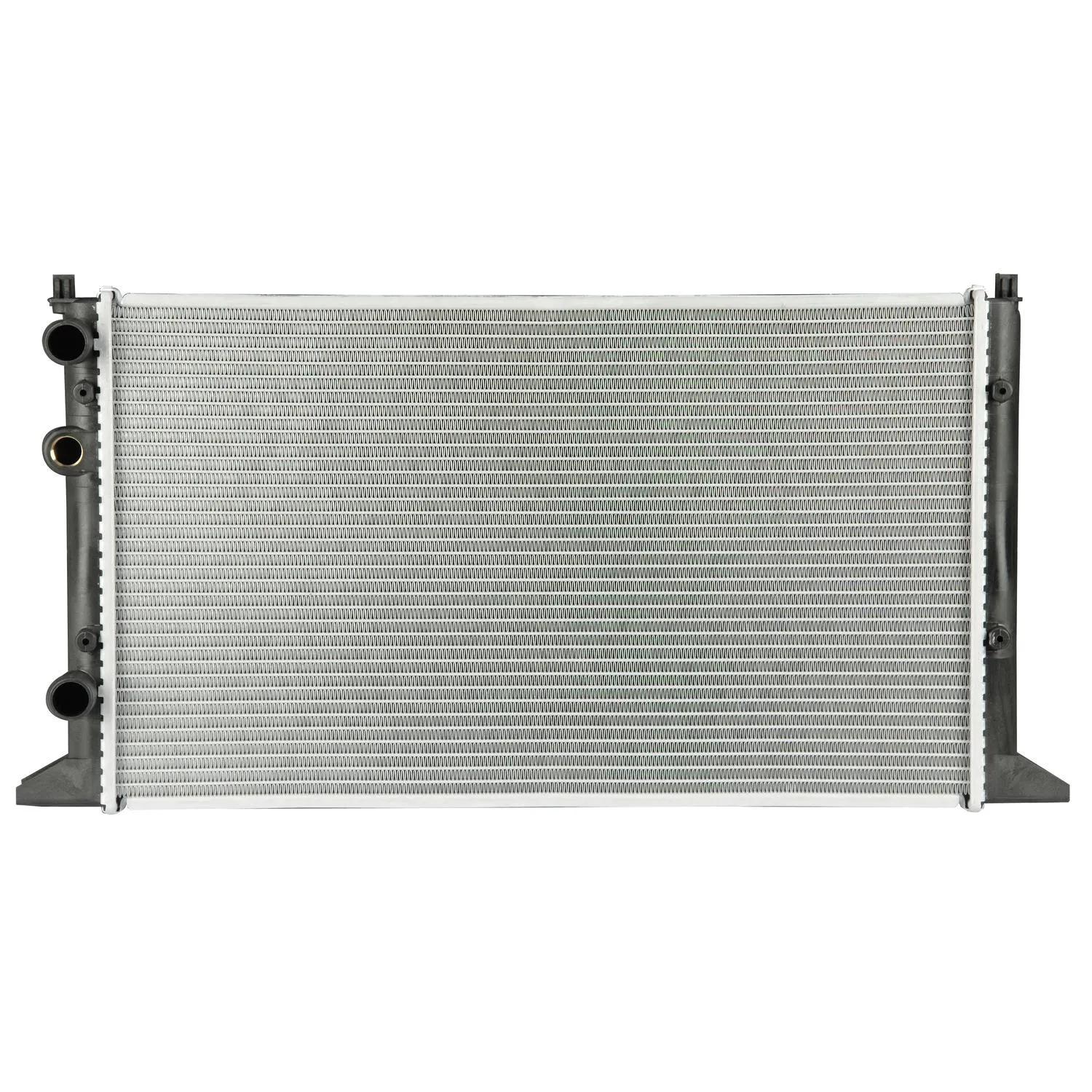

Complete Radiator

#SPECU2094

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: RAD2094, CU2094, 7644A, 1554, 1HM121253H, 3599, 432282, 8012094, 2094

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 24.5625
Inlet Diameter (in) 1-1/4 in.
Length (in.) 14.125
Number of Rows 2
Outlet Diameter (in) 1.25
Radiator Inlet Header Size 1 9/16 in. x 14 3/16 in.
Radiator Make Volkswagen
Radiator Material Aluminum
Transmission Ports (Yes/No) No
Radiator Oil Cooler Size (Concentric)
Radiator Outlet Connector Size 1 1/4 in.
Radiator Core Size 24-9/16 in. x 14-1/8 in. x 1-1/4 in.
Radiator Inlet Connector Size 1 1/4 in.
Radiator Outlet Header Size 1 9/16 in. x 14 3/8 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
