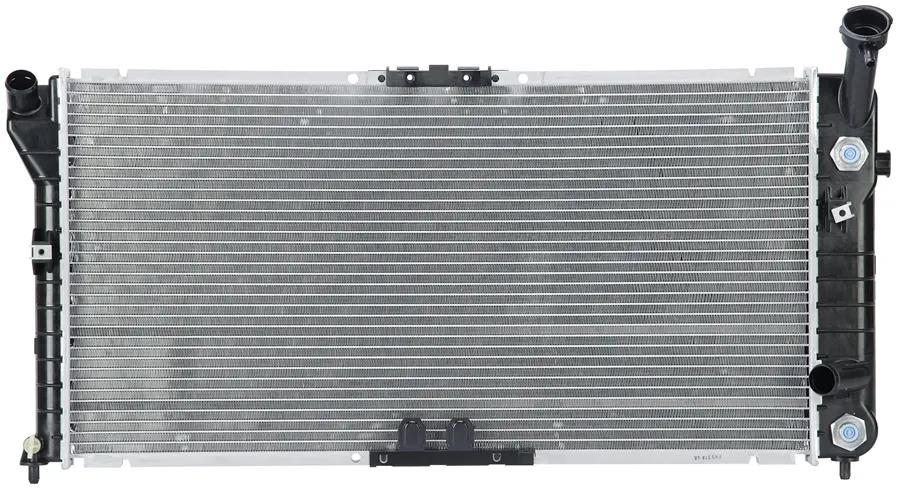

Complete Radiator

#SPECU2251

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 432427, 9602, 2251, RAD2251, 52498589, 3604, 2636, 2577, 52485628, C2251, 8012251, REA411518A, 1519

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 30.5
Inlet Diameter (in) 1-5/16 in.
Length (in.) 15.3125
Number of Rows 1
Outlet Diameter (in) 1.3125
Radiator Inlet Header Size 2 7/16 in. x 16 9/16 in.
Radiator Make Chevrolet / Oldsmobile / Pontiac
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 4 Plates 11 1/2 in.
Radiator Outlet Connector Size 1 5/16 in.
Radiator Mount Type Top Cradle / Bottom Pin
Radiator Core Size 30-1/2 in. x 15-5/16 in. x 1 in.
Radiator Inlet Connector Size 1 5/16 in.
Radiator Outlet Header Size 2 7/16 in. x 16 7/8 in.
Transmission Oil Cooler Size 4 Plates 11-1/2 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
