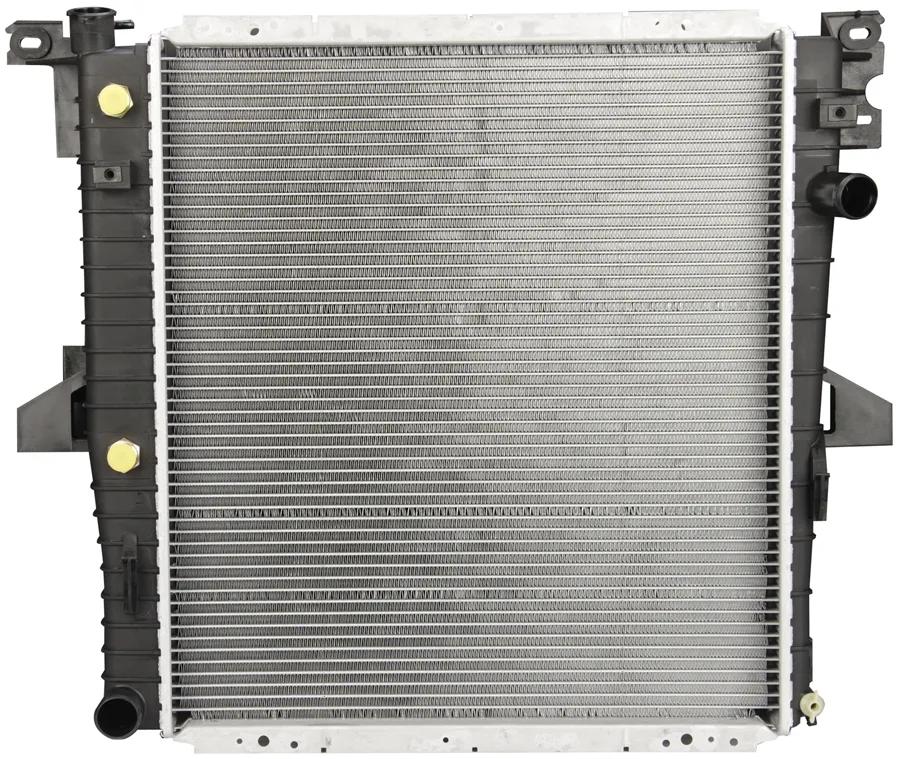

Complete Radiator

#SPECU2308

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 431410, 412308, RAD2308, A2308, CU2308, 9426, OR2308, 2770, C2308, FO3010152, 40649, 8012308, XL2H8005CA, XL2Z8005CA, REA412308A, 3279, RAD131, 2308

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 20.8125
Inlet Diameter (in) 1-1/2 in.
Length (in.) 23.75
Number of Rows 1
Outlet Diameter (in) 1.5
Radiator Inlet Header Size 3 in. x 23 3/4 in.
Radiator Make Ford / Mercury
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 7 Plates 12 in.
Radiator Outlet Connector Size 1 1/2 in.
Radiator Mount Type Flange Mount
Radiator Core Size 20-13/16 in. x 23-3/4 in. x 1 in.
Radiator Inlet Connector Size 1 1/2 in.
Radiator Outlet Header Size 3 in. x 23 3/4 in.
Transmission Oil Cooler Size 7 Plates 12 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
