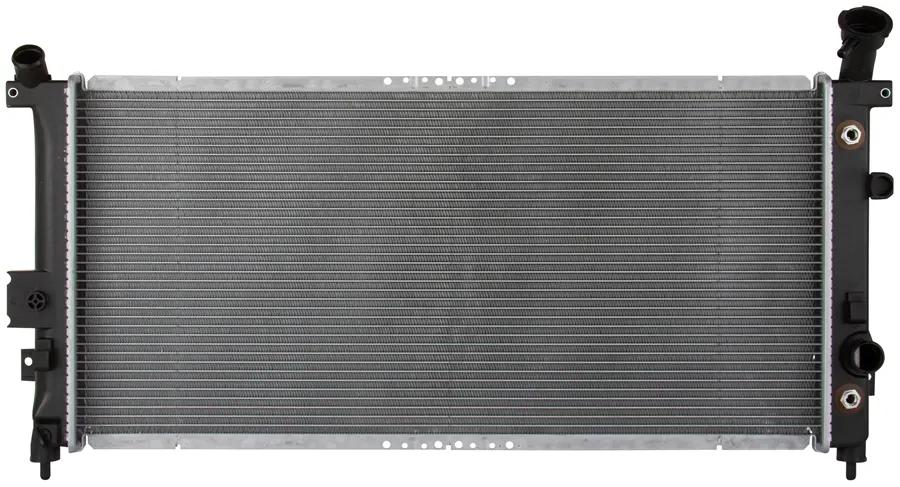

Complete Radiator

#SPECU2562

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 21388, REA412562A, 3318, 2743, 2620, RA10009, 15791270, 2908, 25813509, 15791271, 432428, 10327416, CU2728, A2728, 2562, 15208772, CU2562, 21638, 21637, 21636, 21635, 10310317, 3448, 10310318, 2236, GM3010213, 412562, 10420728, 432351, RAD2728, 25813498, C2562, 2621A, 2694, 10420263, RAD2562, OR2562, 15208776, 3257, 2563, 10327534, 2729, 2728, C2730, 9657, 10436713, 10436714, 15791268, RA10010, 15791269, 0AGM5348, 2730, 8012562, 2219015, 15210782, 15210781

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 30.125
Inlet Diameter (in) 1-3/8 in.
Length (in.) 14.8125
Number of Rows 1
Outlet Diameter (in) 1.375
Radiator Inlet Header Size 2 3/8 in. x 15 1/2 in.
Radiator Make Buick / Chevrolet / Oldsmobile
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 9 Plates 11 in.
Radiator Outlet Connector Size 1 3/8 in.
Radiator Mount Type Top Saddle / Bottom Pin
Radiator Core Size 30-1/8 in. x 14-13/16 in. x 5/8 in.
Radiator Inlet Connector Size 1 3/8 in.
Radiator Outlet Header Size 2 3/8 in. x 15 5/8 in.
Transmission Oil Cooler Size 9 Plates 11 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
