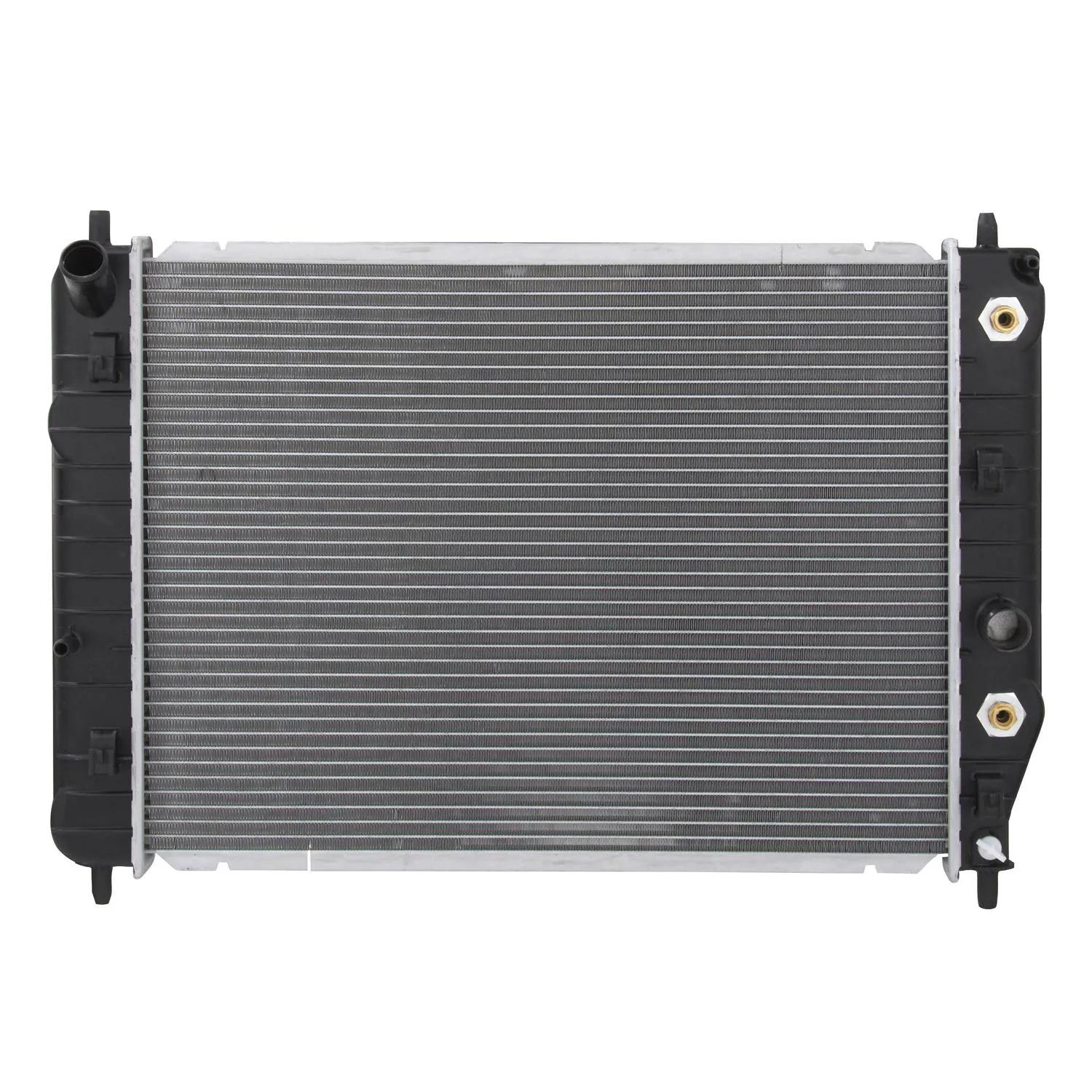

Complete Radiator

#SPECU2715

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 21633, 412715, CU2715, 10346017, A2715, RAD2715, C2715, REA412715A, 8012715, 10332373, 2943, 2219393, RA10025, 21996497, 438215, 15795699, 2715

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 23.4375
Inlet Diameter (in) 1-5/16 in.
Length (in.) 17.25
Number of Rows 1
Outlet Diameter (in) 1.3125
Radiator Make Cadillac
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 4 Plates 11 1/2 in.
Radiator Outlet Connector Size 1 5/16 in.
Radiator Mount Type Top / Bottom Post
Radiator Core Size 23-7/16 in. x 17-1/4 in. x 1 in.
Radiator Inlet Connector Size 1 5/16 in.
Transmission Oil Cooler Size 4 Plates 11-1/2 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
