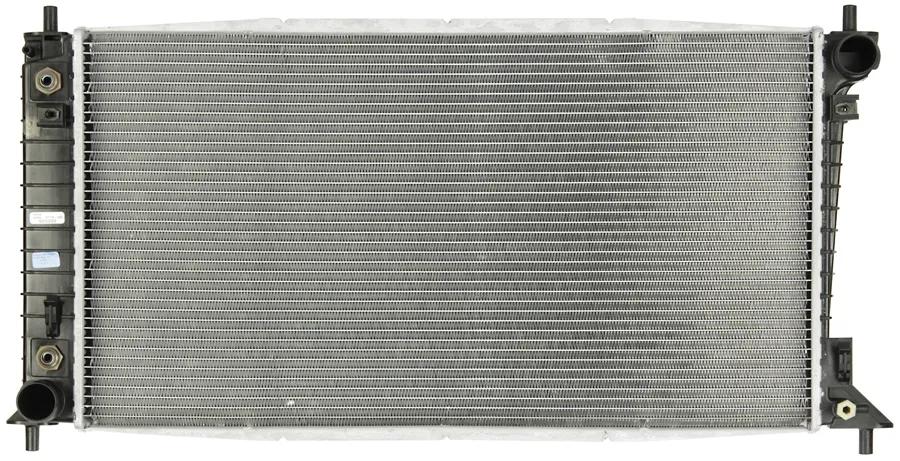

Complete Radiator

#SPECU2719

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: 103032, 9442, CU2719, 2L348005CA, 9445, 0AFD5644, REA412719A, C2725, FO3010268, 4L3Z8005BC, REA412725A, 8012725, 6L3Z8005B, 4L3Z8005BB, 2669, 4L348005BC, 2964, RAD22, 438203, RAD2719, 2725, CU2725, 103066, FO3010252, 8012719, 412719, C2719, 2719, 2L3Z8005CA, 3627

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Crossflow
Height (in.) 31.875
Inlet Diameter (in) 1-3/4 in.
Length (in.) 17.0625
Number of Rows 1
Outlet Diameter (in) 1.75
Radiator Inlet Header Size 3 3/16 in. x 17 5/16 in.
Radiator Make Ford / Lincoln
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 7 Plates 12 in.
Radiator Outlet Connector Size 1 3/4 in.
Radiator Mount Type Pin
Radiator Core Size 31-7/8 in. x 17-1/16 in. x 2-1/4 in.
Radiator Inlet Connector Size 1 3/4 in.
Radiator Outlet Header Size 3 3/16 in. x 17 1/2 in.
Transmission Oil Cooler Size 7 Plates 12 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
