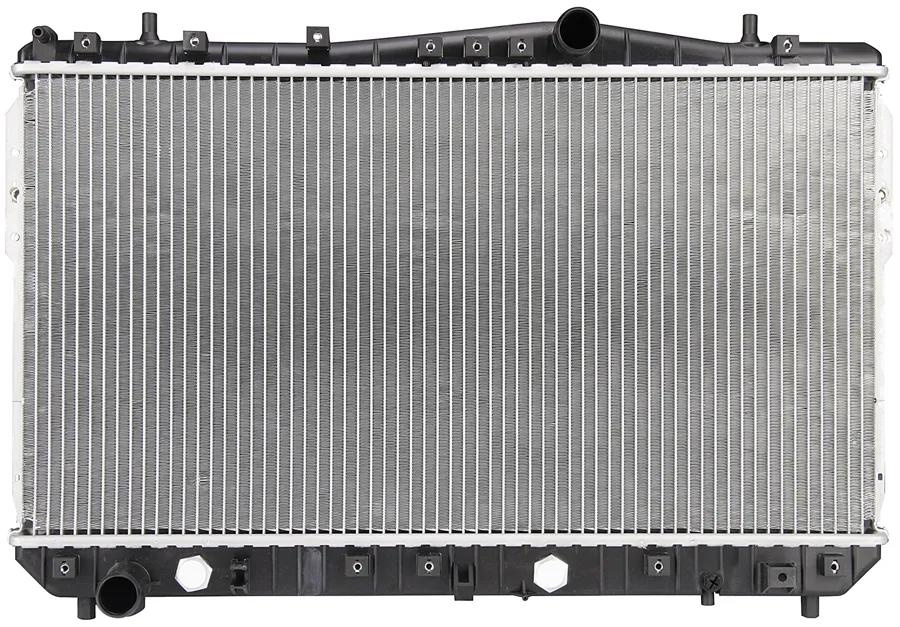

Complete Radiator

#SPECU2788

Product Overview


The Structure And Design Of Spectra Premium Radiators Are Built To Undertake The Same Durability And Expectations Of That Of The OE.

Interchanges & Equivalent parts: OR2788, 434039, 96553428, 412788, RAD2788, 96553424, P96553378, 0AKA6042, C2788, 2788, 7470A, 96553378, 103249, 1770085Z01, 1770085Z00, 61634, CU2788, A2788, REA412788A, 8012788, 2876, 8919, 2219139, 96553423, 96553422, 96553244, 96553243, 0AKA6326

Specifications


Direct Fit or Universal Direct Fit
Downflow or Crossflow Downflow
Height (in.) 14.75
Inlet Diameter (in) 1-5/16 in.
Length (in.) 27.5
Number of Rows 1
Outlet Diameter (in) 1.3125
Radiator Inlet Header Size 1 15/16 in. x 28 3/8 in.
Radiator Make Chevrolet / Suzuki
Radiator Material Aluminum
Transmission Ports (Yes/No) Yes
Radiator Oil Cooler Size 4 Plates 11 1/2 in.
Radiator Outlet Connector Size 1 5/16 in.
Radiator Mount Type Pin
Radiator Core Size 14-3/4 in. x 27-1/2 in. x 5/8 in.
Radiator Inlet Connector Size 1 5/16 in.
Radiator Outlet Header Size 2 3/16 in. x 28 1/8 in.
Transmission Oil Cooler Size 4 Plates 11-1/2 in.

Features & Benefits


  • To Allow Room For The Occurring Thermal Expansion, OE Clevis Pins Are Included Where It Is Required
  • Subject To Aging And Endurance Testing To Validate Performance Under Extreme Weather Conditions
  • Premium OE Hardware And Fittings Included In Every Box
  • Premium OE Hardware And Fittings Included In Every Box
  • Increased Tube Wall Thickness For Durability And Longevity
  • To Reduce Stress On The Headers And Prevent Warping During Thermal Expansion, Stress Cuts Are Made To The Side Rails
  • Redesigned Corner Brackets Toá Increase Unit Durability And Improve Ease Of Installation
