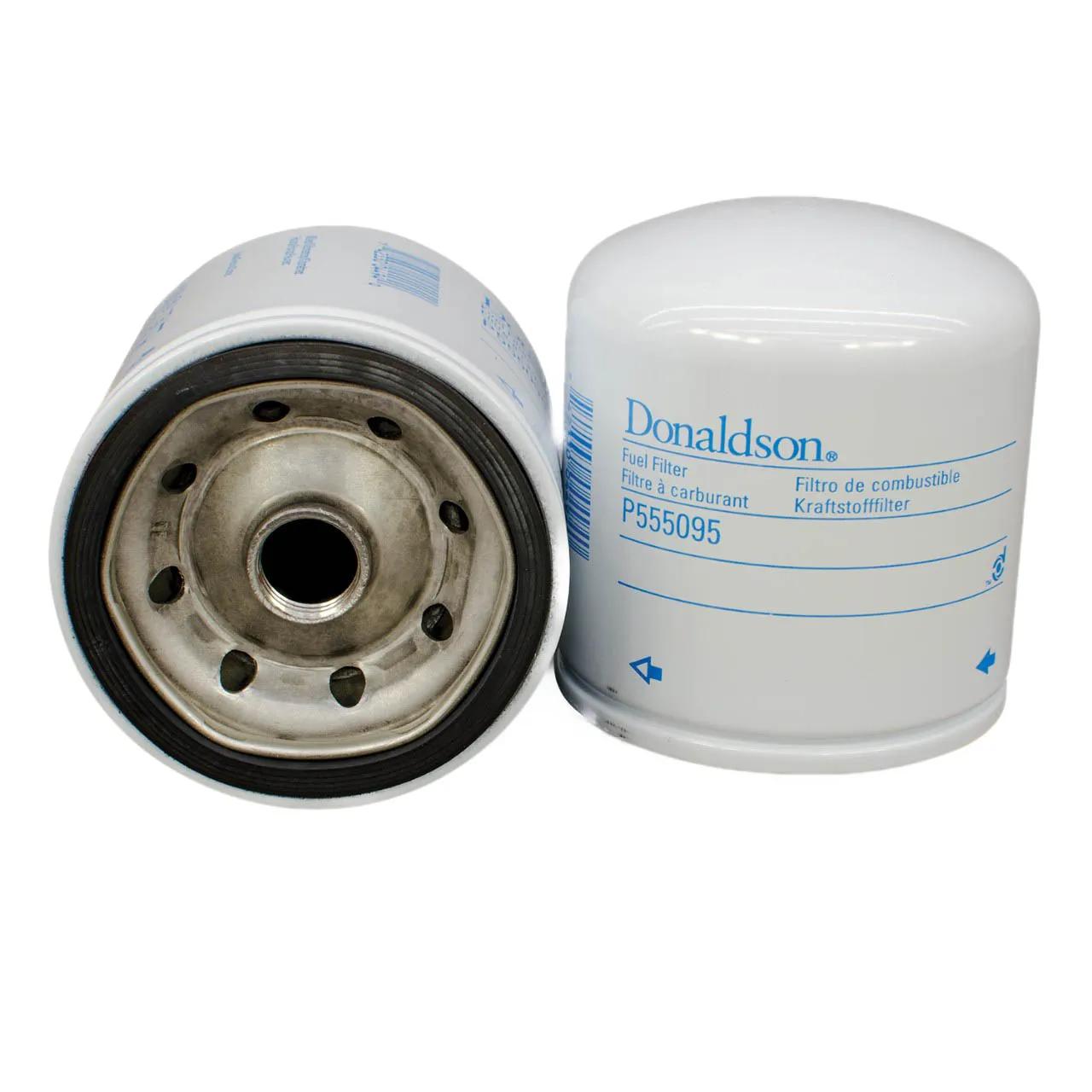

Fuel/Water Separator, Spin-On L: 3,26 in, Thread : M16 x 1,5 , OD: 3,02 in
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Efficiency Test Std | ISO 19438 |
| Gasket ID | 2.38 in (60.5 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Outer Diameter | 3.02 in (76.71 mm) |
| Length Range | 3 to 3.99 in |
| Style | Spin-On |
| Thread Size | M16 x 1.5 |
Interchanges & Equivalent parts:
ABPN10GFF5095, BF1235, BF1261, BF7608, BF790, 86195, 86361, FF5095, FFR85095, P4520, P6503, FF1085, FF1116, FF896, H81WK01, H30WK01, SN5095, F288, LFF3806, LFF4806, EFG106, FD3372, 3195, PFF5504, F55997, PER323F, Z157, Z167, Z55, FC7908, SK3600, 33195, TP1227, XD701, SP967, SFF7352, 9772040011, 95361, 4121609, 4121609B, 666735, 1457434103, 1457434116, 1457434118, 1133494R1, E7HZ9365B, E97454, CX0708B, C16112150, C16012150, Z577, 69008935, 45000079, FNE238, 9576P555095, 9613344, 961344, E5HN9N327AA, E6HZ9155A, E6HZ9155F, E6HZ9365A, E7HZ3965A, E7HZ9365A, NH9613344, DNP555095, 821S, 1736565, KC6, 7511800, 560217553, AWK151, AWK198, KC23, KC51, VFF110, 3958768, 3961258, 89613344, 961334, CS182, 7700688711, 350, S1810NR, RN181B, GFE5299, 688904, VPD6008, FF555095, 811429, WGF5046, WGF5095, 2191-P555095, ABP N10G FF5095, DN P555095, DN P555095, 00811429, 0451103012, 3192, 33192, 3I1321, 6647773, 666, BF1257, E67HZ9365A, 6667352, DONP555095, FF42002, FF42002FLG, FIL3195, HLC1055407, LFF3518, PA10043, SY86370
