2 POINTS

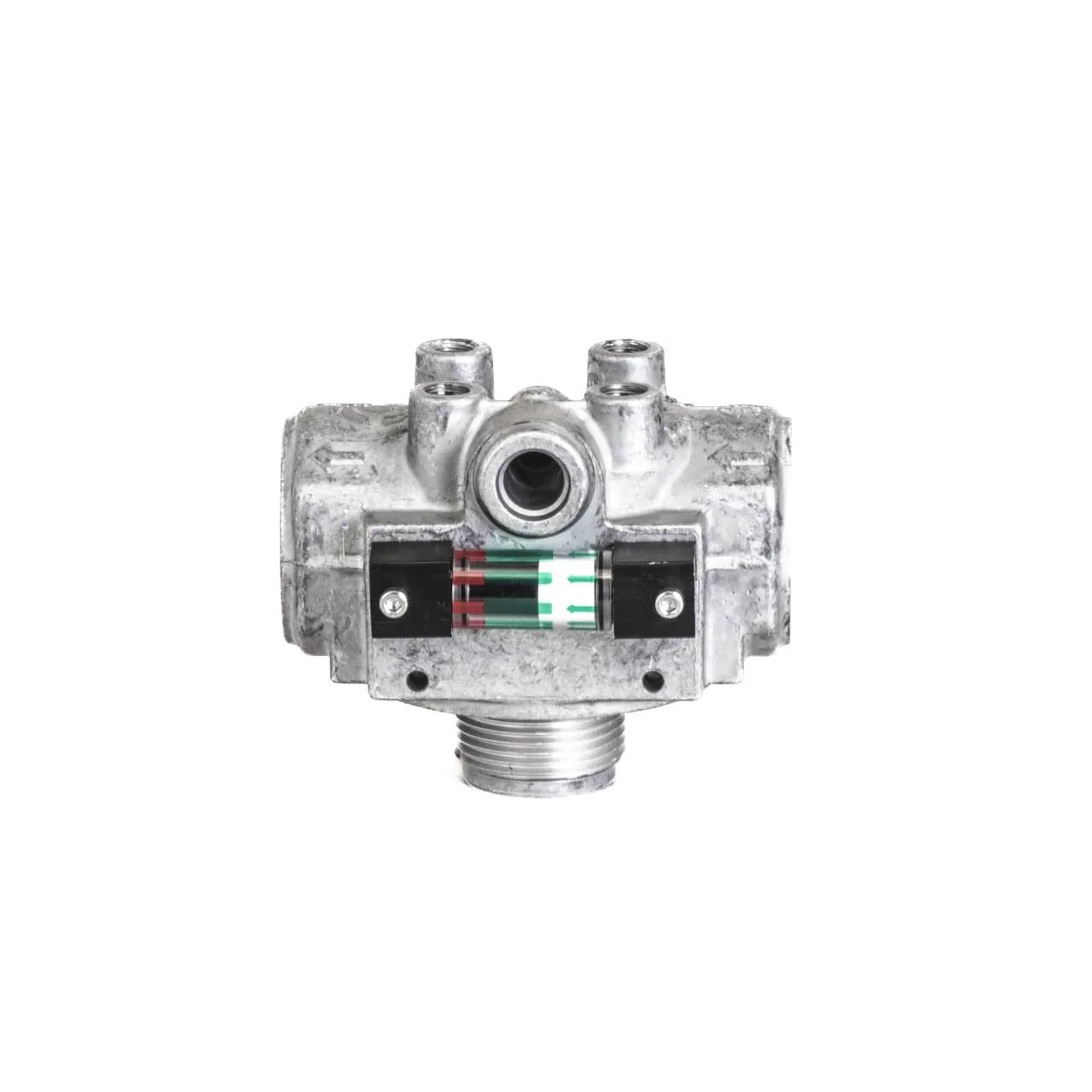

Head Assy L: 4,08 in, OD: 1-11 1/2 NPT , H: 3,68 in
#DONP564485
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1,7 bar |
| Family | HMK04 |
| Filter-to-Head Thread | 1 3/8-12 UN |
| Height | 3.68 in (93.48 mm) |
| Inlet Size | 1-11 1/2 NPT |
| Length | 4.08 in (103.7 mm) |
| Outer Diameter | 1-11 1/2 NPT |
| Outlet Size | 1-11 1/2 NPT |
| Series | HMK04/24 |
| Standard Length | 4 to 5 in |
