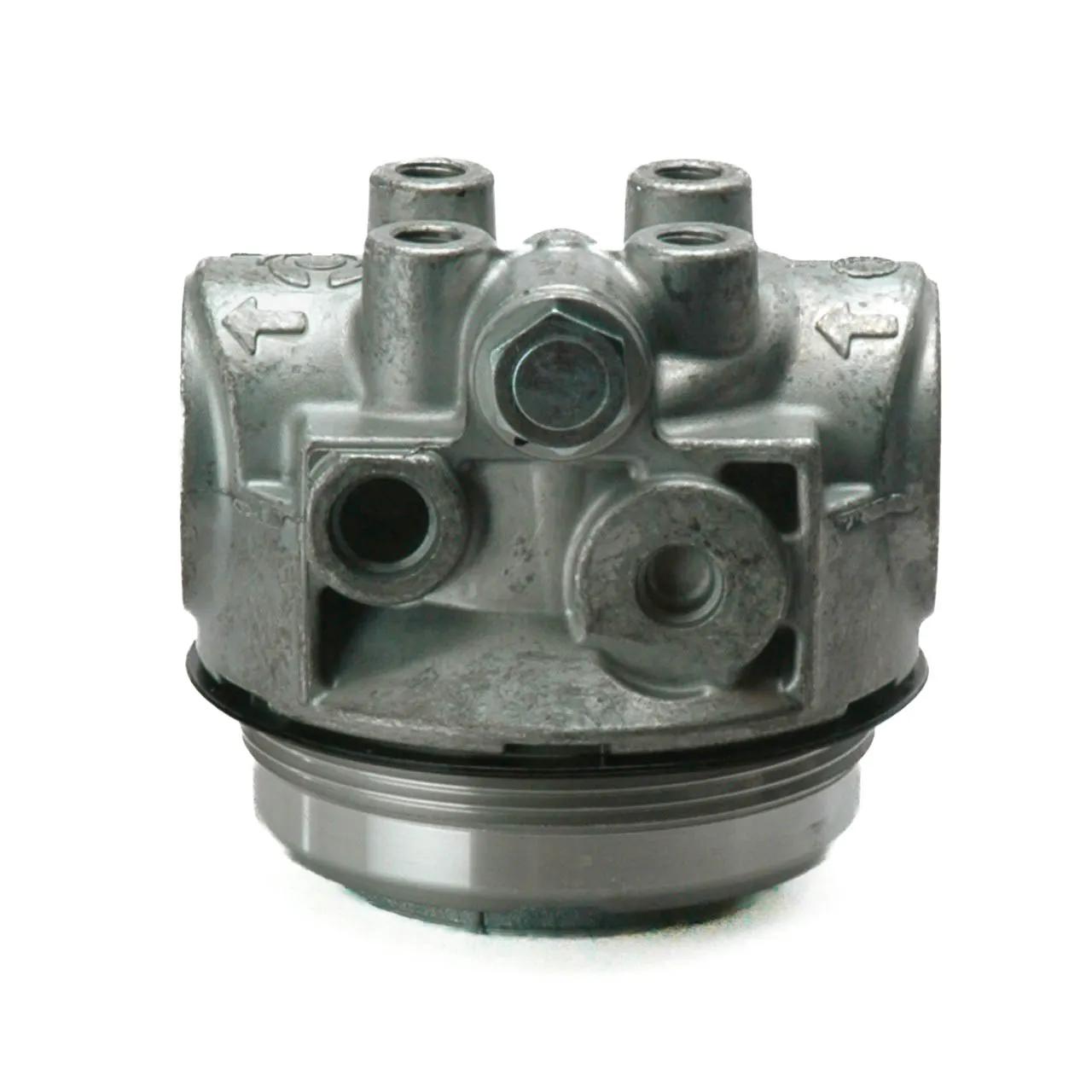

Head Assy L: 4 in, OD: SAE-16 , H: 3,66 in
#DONP568858
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bolt Hole Circle Diameter | 2.87 in (72.9 mm) |
| Bolt Hole Diameter | 0.24 in (6.1 mm) |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 50.77 psi (3.5 bar) |
| Filter-to-Head Thread | M87 x 2,5 |
| Height | 3-21/32 in (9.3 cm) |
| Inlet Size | SAE-16 |
| Inner Diameter | 1.89 in (48.1 mm) |
| Length | 4 in (10.16 cm) |
| Outer Diameter | SAE-16 |
| Outlet Size | SAE-16 |
| Series | HNK04/05 |
| Length Range | 4 to 4.99 in |
| Overall Length | 10.04 in (255.1 mm) |
Specifications
| Number of Bolt Holes | 6 |
| Vehicle Make | Schroeder |
