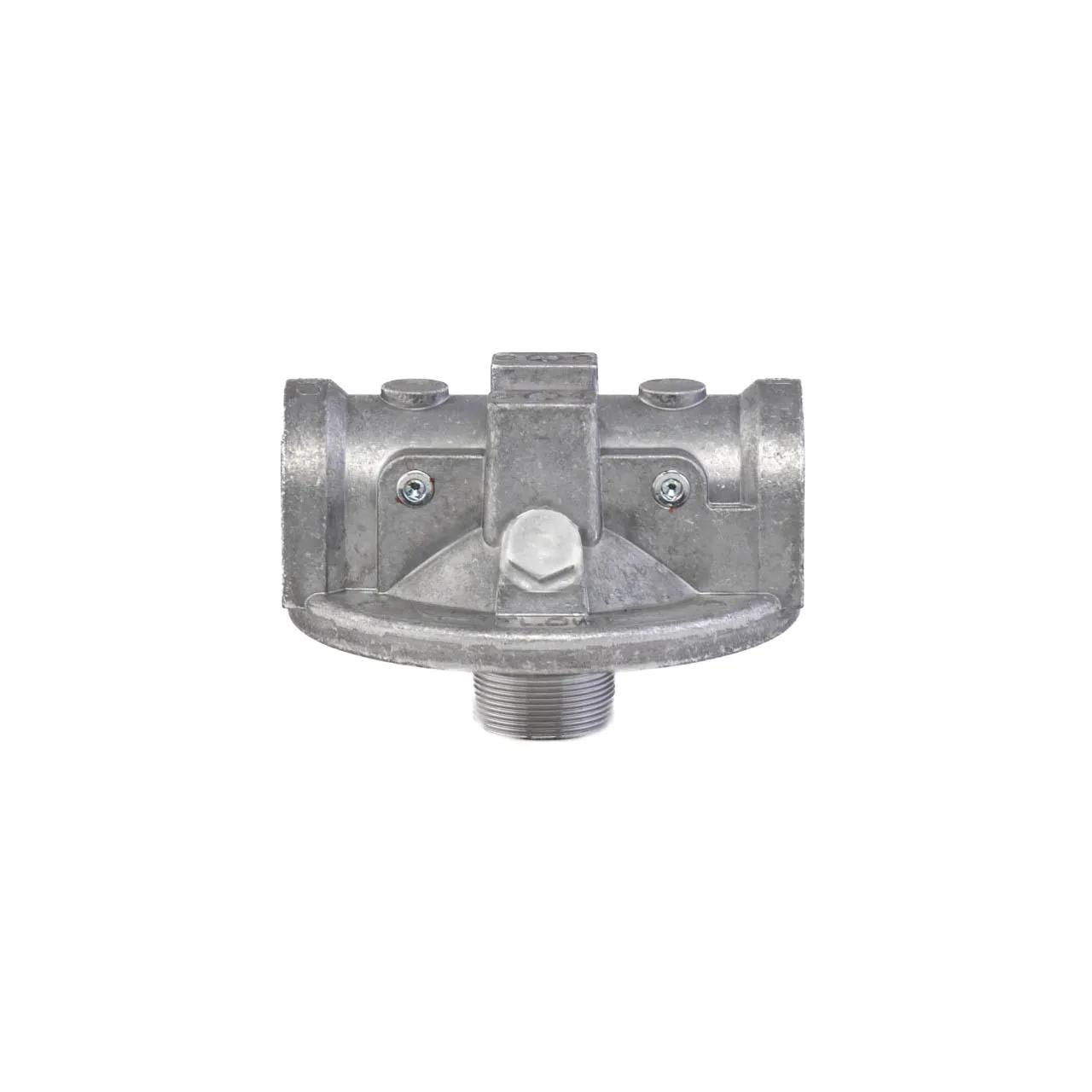

Head Assy L: 5,39 in, OD: 1 1/4 NPT , H: 3,7 in
#DONP576557
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1,72 bar |
| Filter-to-Head Thread | 1 1/4 BSP/G & 1 1/2-16 UN |
| Height | 3.7 in (93.98 mm) |
| Inlet Diameter | 1.65 in (41.91 mm) |
| Inlet Size | 1 1/4 NPT |
| Inner Diameter | 1.34 in (34.1 mm) |
| Length | 5-25/64 in (13.69 cm) |
| Outer Diameter | 1 1/4 NPT |
| Outlet Size | 1 1/4 NPT |
| Series | SP50/60 |
| Length Range | 5 to 6 in |
| Overall Length | 4.28 in (108.8 mm) |
| Bypass Valve Setting HR | 3 bar |
| Outlet Diameter | 1.42 in (36 mm) |
Specifications
| Vehicle Make | Pall |
