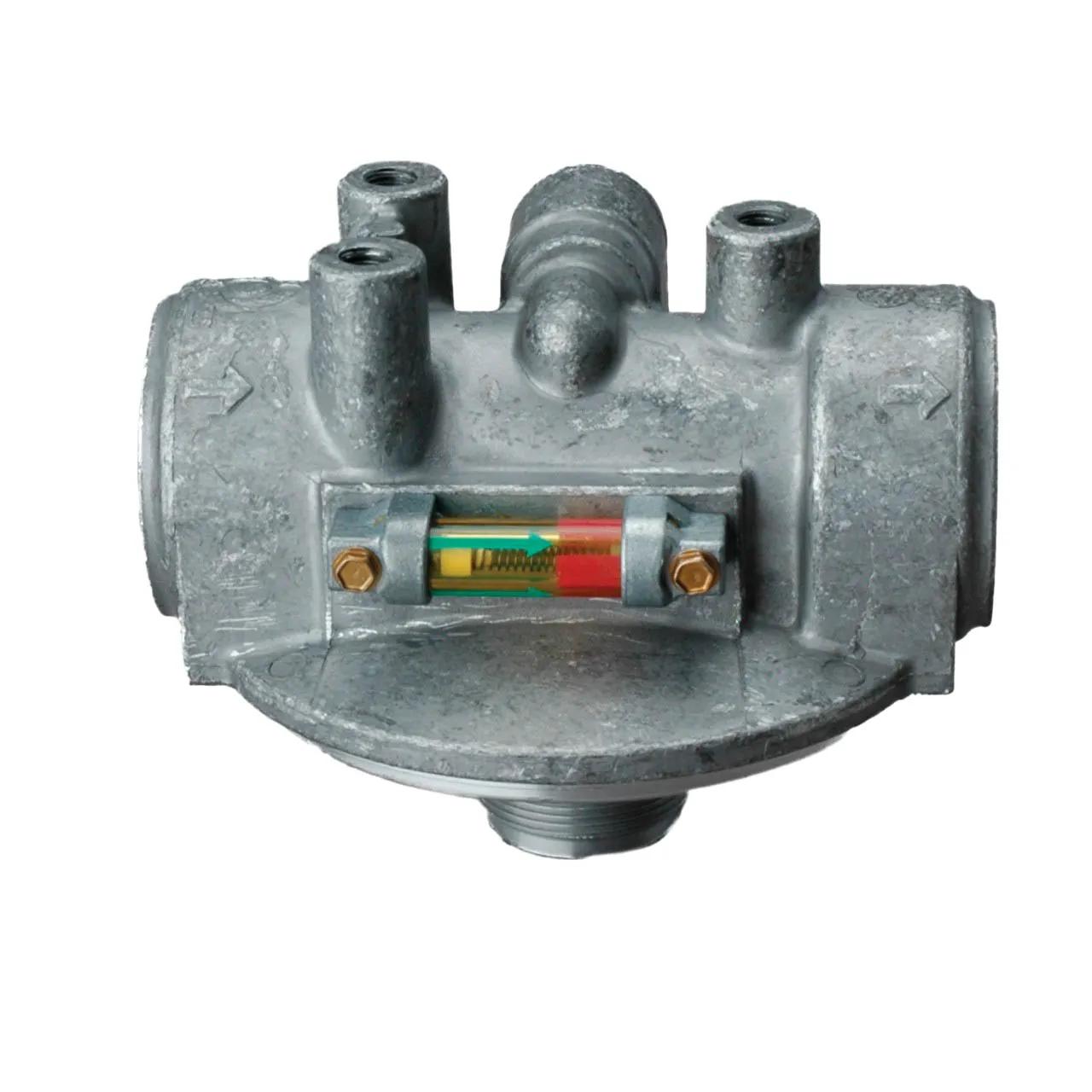

Head Assy L: 5,5 in, OD: SAE-20 , H: 4,41 in
#DONP166439
Specifications
Bypass Valve | Yes |
Bypass Valve Setting LR | 1,7 bar |
Filter-to-Head Thread | 1 1/2-16 UN |
Height | 4.41 in (112.02 mm) |
Inlet Size | SAE-20 |
Length | 5.5 in (139.7 mm) |
Outer Diameter | SAE-20 |
Outlet Size | SAE-20 |
Series | HBK05 |
Standard Length | 5 to 6 in |
