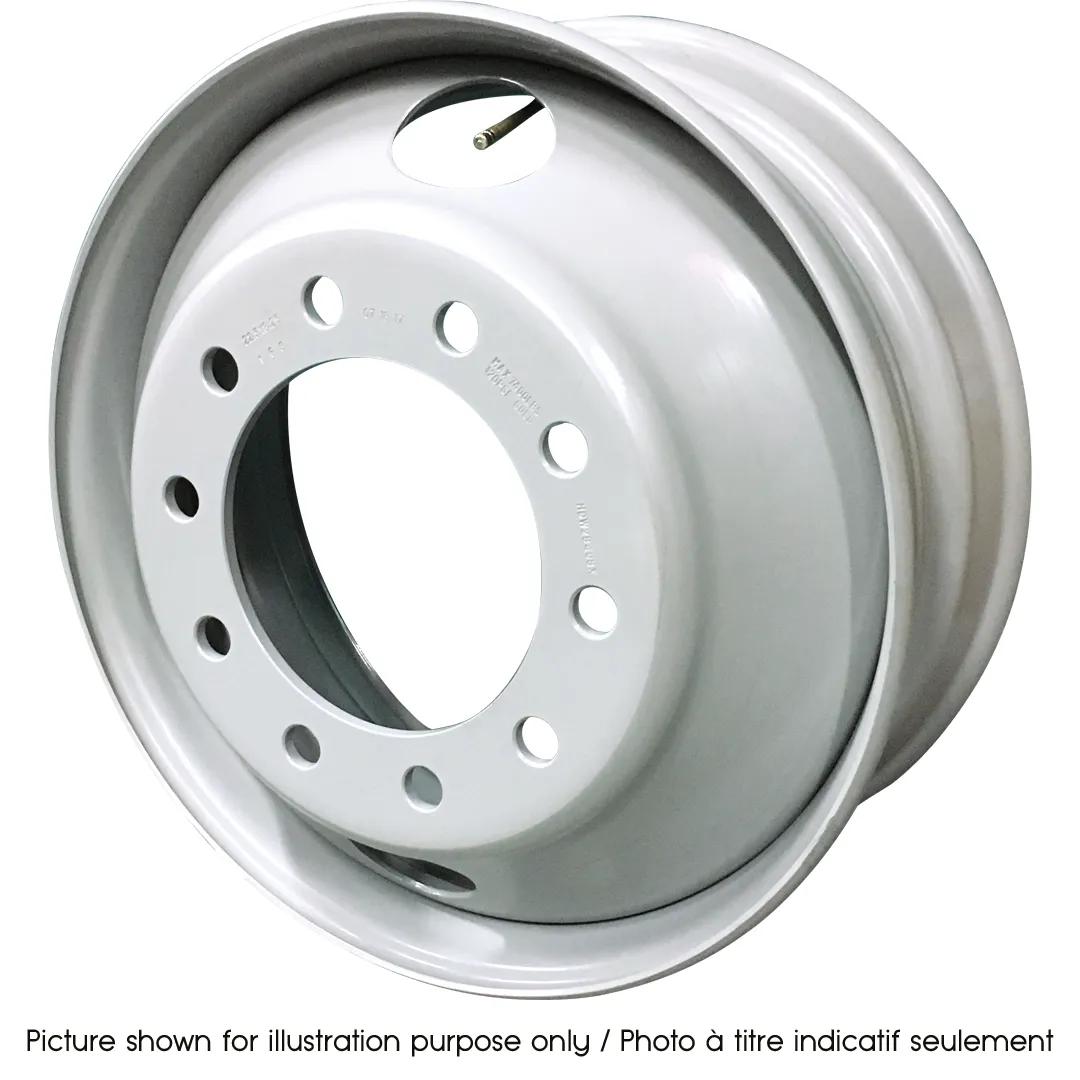

Steel Wheel - 22.5 in. X 8.25 in. - 2 Hand Holes - 10 Bolt Holes


Product Overview

This part will fit if you were looking for these: PROWH22582510HP2W, WHL27404PW, 28408X, 50408PW, 50408NE, 28408PW


Bolt Circle Diameter 285.75 mm.
Center Bore (in) 8.66 in.
Hub Or Stud Mount Hub-Piloted Wheels
Inset (in) 6.18 in.
Max Inflation (psi) 120 PSI
Max Load (lbs) 7400
Number of Bolt Holes 10
Offset (in) 6.62
Rim Diameter (in) 22.5
Rim Width (in) 8.25
Bolt Circle (mm) 285.75 mm
Center Bore (mm) 220 mm
Inset (mm) 157 mm
# of Hand Holes 2
Bolt Hole Size 26 mm
# of Bolt Holes 10
Offset 168 mm

Features & Benefits

  • 7,400 lbs Rating – Tested at 14,800 lbs for more than 1,000,000 Cycles with Zero failure.
  • Alloys Steel Achieve 61,000 PSI Tensile Strength Steel
  • Powder-Coat Finish Resists 2,000 Hours of Salt Spray Exposure Testing – Meets OEM Standards
  • Primer Coat Resists 336t Hours of Salt Spray Exposure Testing – Meets OEM Standards
  • All Dimensional Measurements Meet OEM Tolerance
  • Independently Tested to Meet or Exceed the ASTM and SAE Guidelines (ASTM is a trademark of American Society for Testing and Materials Standards. SAE is registered trademark of the Society for Automotive Engineers.)
  • Pre-Installed TR573 Valve Stem
  • OEM Tested / OEM Approved
  • High Tensile Strength – Chip-Resistant
