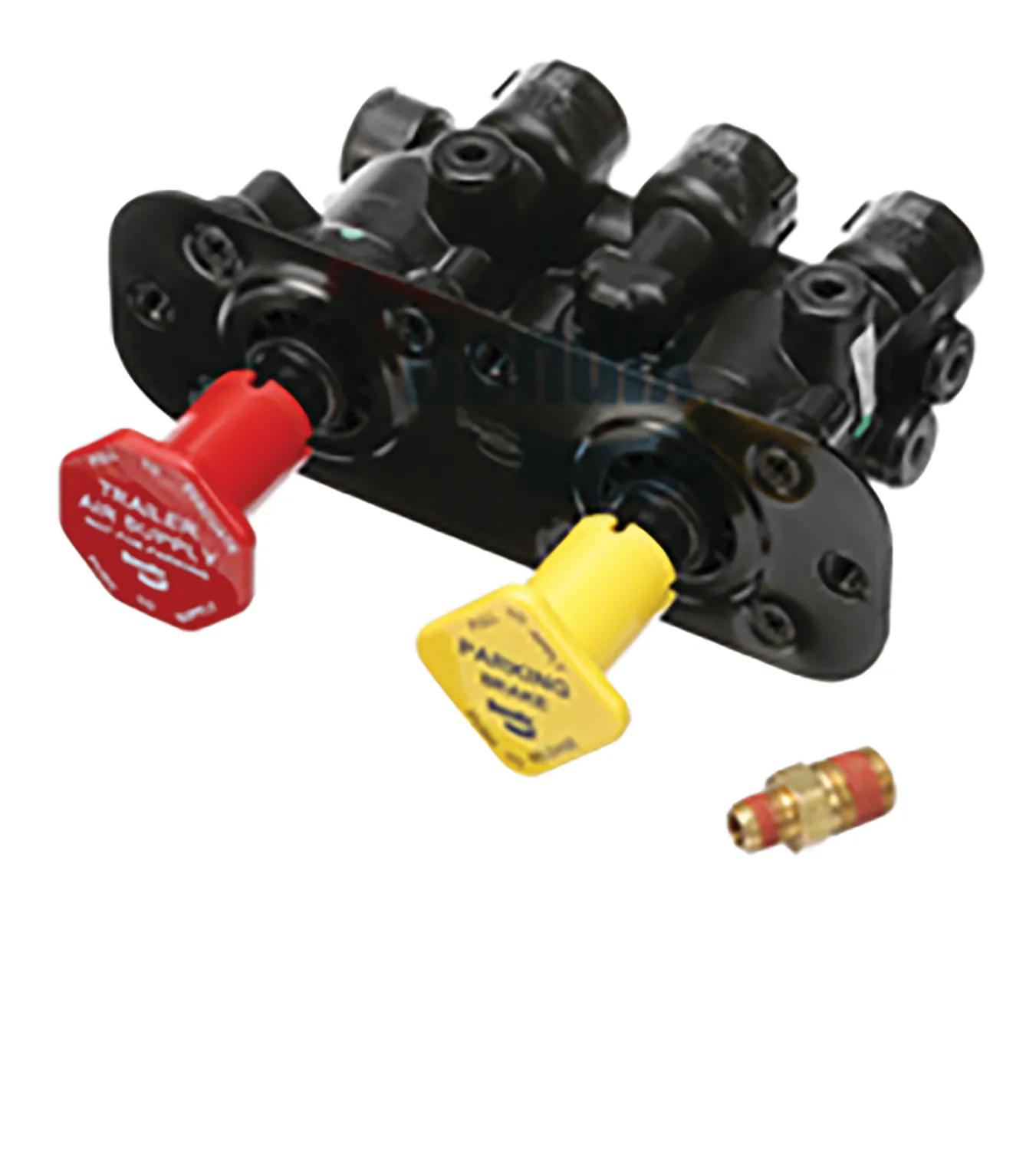

Mv-3 Robinet Freinage A Main
#BEN800527
Sommaire du produit
Designed as a two-button, push-pull control valve, the Bendix MV-3 air brake manifold control valve can function similarly to a two- or three- valve push-pull system, the only difference is that it offers reduced plumbing. It is a service new valve that is made following stringent manufacturing standards to ensure the highest level of quality and performance.
Caractéristiques et avantages
- Housed in a single body that accommodates dual circuit supply through a double check valve
- Receives air supply from the primary or the secondary service reservoir, whichever is at the higher pressure
- Consists of a valve body, plungers, and spools that are made out of non-metallic, noncorrosive material to ensure it lasts longer in service
Spécifications
| Taille de l'orifice d'échappement | 1/4-18 NPT |
| Modèle | MV-3 |
| Orifice d'alimentation principal (po) | 1/4-18 NPT |
| Port d'alimentation secondaire | 1/4-18 NPT |
| Tracteur - Taille de port de distribution | 1/4-18 NPT |
| Pression de déclenchement du tracteur | 20-40 psi |
| Remorque - Taille de port de distribution | 1/4-18 NPT |
| Pression prioritaire de la remorque | 20-30 psi |
| Pression de déclenchement de la remorque | 20-45 psi |
| Poids | 1,57 lb (0,71 kg) |
Interchanges et pièces équivalentes:
| 745-800527 |
| 800527BXW |
| BAN800527 |
| BEN800527 |
| BW 800527 |
| BW 800527 |
| BW800527 |
| BX800527 |
| TWDBEN800527 |
| ZAC800527 |
| 800527 |
