1 POINT

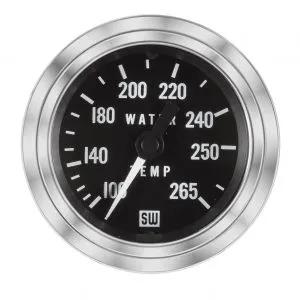

100-265 WATER TEMPERATURE
#SWA82326-216
Product Overview
Tubing included with mechanical gauge kits. Part number suffix = tubing length (inches) included with gauge (e.g. -72 = 72" tubing.) 12V or 24V light kits are sold separately. These are available for 5/8" and 1/2" light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations. Please see Accessories section for available light kits, panel kits, and other options.Warning: The tubing on mechanical temperature gauges is gas-filled and cannot be field-altered without damaging the gauge.
Specifications
| Bezel/Finish | Polished |
| Diameter | 2-1/16 in |
| Family | Deluxe |
| Finish | Polished |
| Gauge Series | Analog |
| Gauge Size (in.) | 2 1/16 diameter |
| Gauge Size (MM) | 52.40 diameter |
| Gauge Style | Stewart Warner Gauge Line Series |
| Gauge Type | Voltmeter |
| Illuminated | Yes |
| Liquid-Filled | No |
| Note | Tubing included with mechanical gauge kits. Part number suffix = tubing length (inches) included with gauge (e.g. -72 = 72"? tubing.) 12V or 24V light kits are sold separately. These are available for 5/8"? and 1/2"? light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations. Please see Accessories section for available light kits, panel kits, and other options. Warning: The tubing on mechanical temperature gauges is gas-filled and cannot be field-altered without damaging the gauge. |
| OEM # | No |
| Product Type | Mechanical |
| Sending Unit | Electrical |
| Sending Unit Included | Yes |
| Sweep | 90 degree sweep |
| Temperature Range | 100-265 °F |
| Type | Temperature Gauge - Water (mechanical) |
| Volt | 12V |
Interchanges & Equivalent parts:
| 82326-216 |
