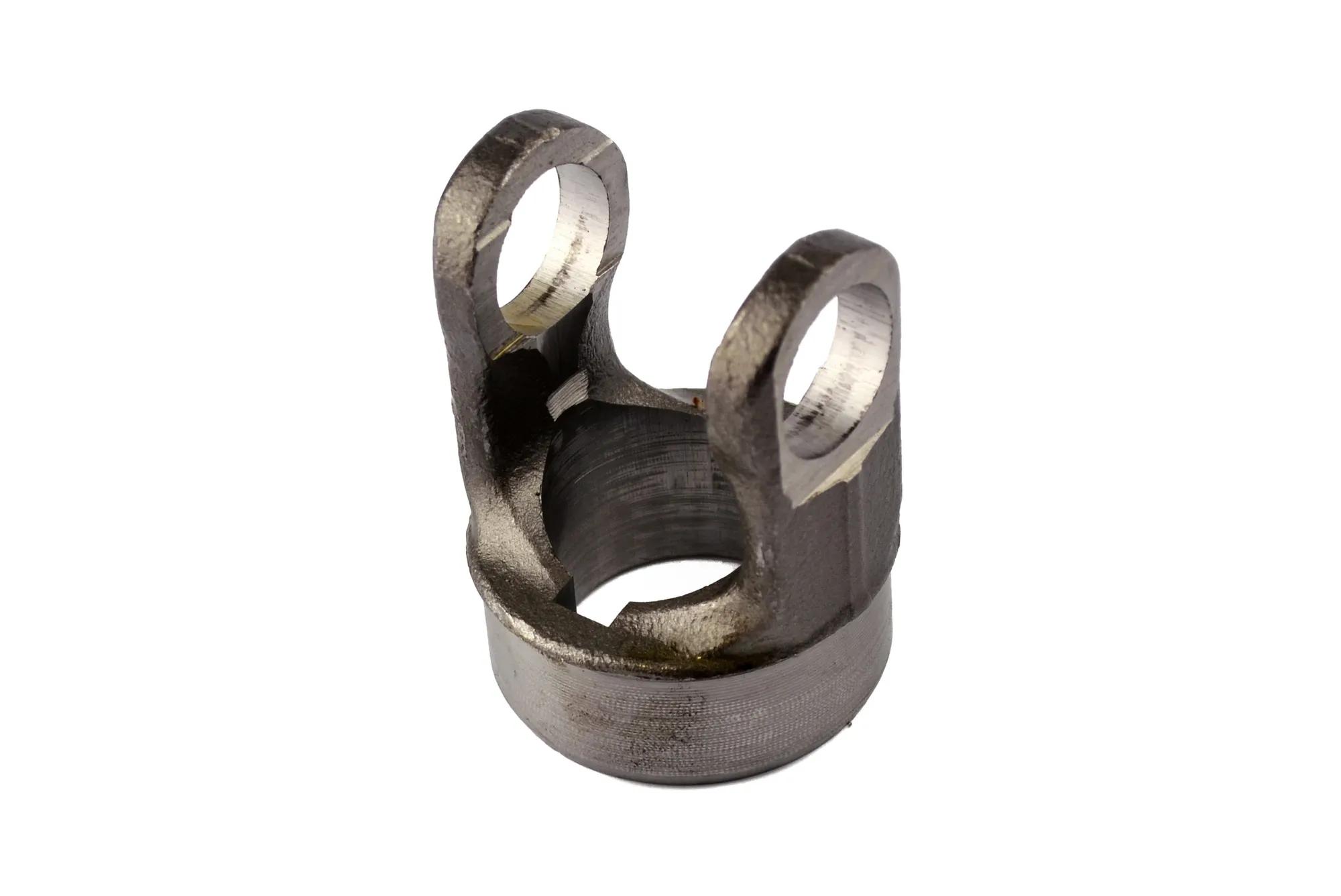

1000 END YOKE - ROUND HOLE
#SPI10-4-223
Specifications
| Bearing Cap Diameter | 15/16 in (2.39 cm) |
| Center Line to End of Hub | 2-1/2 in (6.35 cm) |
| Hub Diameter | 2-1/4 in (5.72 cm) |
| Involute Spline | No |
| Joint Angle | 60 deg |
| Key Way Location | 3 |
| Keyway Size | 3/8 in (0.97 cm) |
| Material | Steel |
| Mount Hole Diameter (in.) | 1-43/64 in (4.24 cm) |
| Series | 1000 |
| Set Screw Location (W) | 6 |
| Set Screw Size | 3/8 in (0.97 cm) |
| Type | Keyed Hole Yoke |
| Yoke Dim Across Ears | 1-1/2 in (3.81 cm) |
| Yoke Style | ISR |
| Yoke Type | Full Round |
Interchanges & Equivalent parts:
| 104223 |
| 1662289C1 |
| 2104-104223 |
| E104223 |
| SP 10 4 223 |
| SP 104223 |
| TWD104223 |
| 10-4-223 |
