1000 END YOKE - ROUND HOLE
#SPI10-4-373

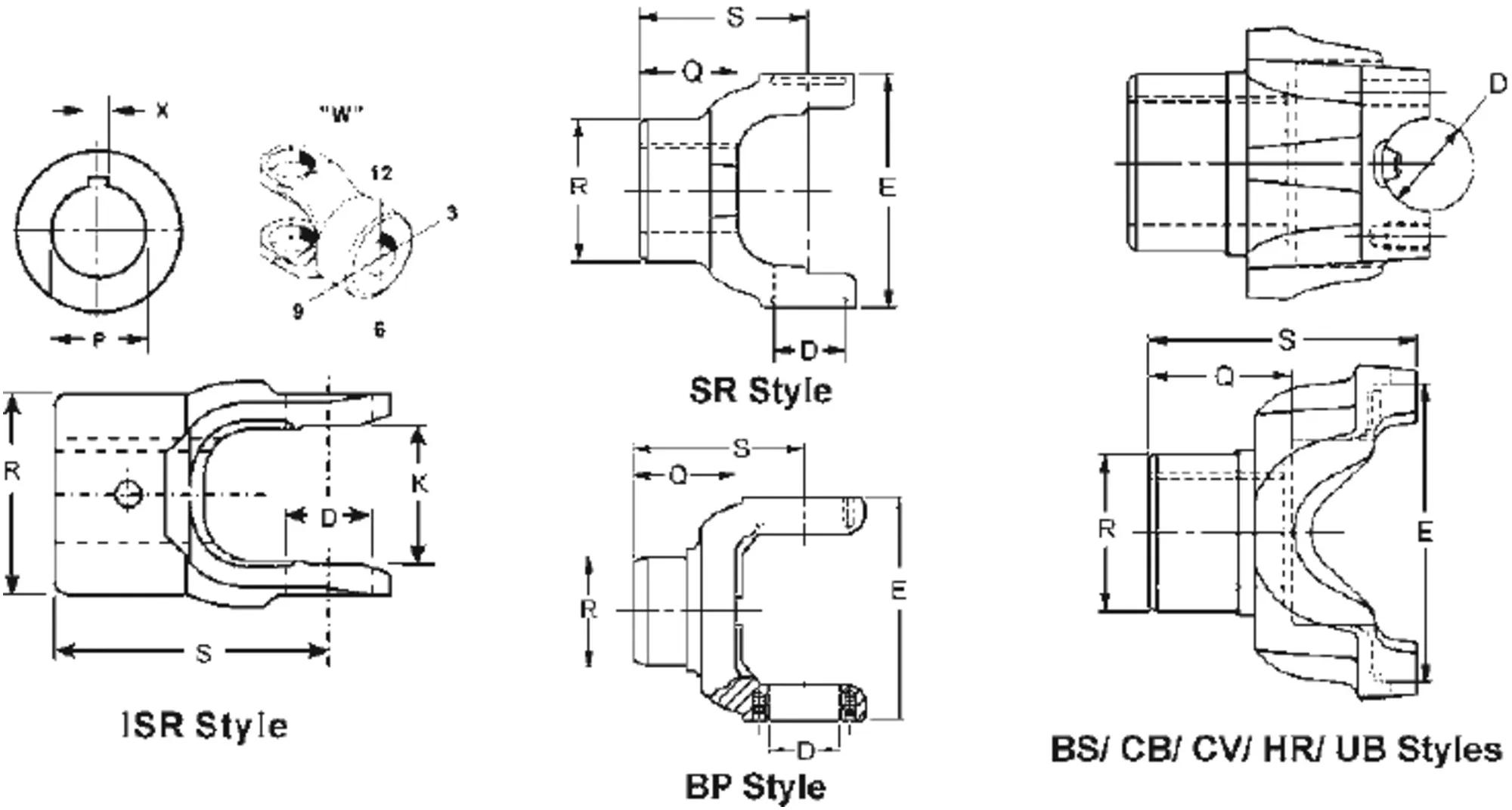

Specifications
| Bearing Cap Diameter | 15/16 in (2.39 cm) |
| Center Line to End of Hub | 2-1/2 in (6.35 cm) |
| Hub Diameter | 1-5/8 in (4.14 cm) |
| Joint Angle | 60 deg |
| Key Way Location | 12 |
| Material | Steel |
| Mount Hole Diameter (in.) | 5/8 in (1.6 cm) |
| Series | 1000 |
| Set Screw Location (W) | 6 |
| Set Screw Size | 3/8 in (0.97 cm) |
| Slot Width | 3/16 in (0.48 cm) |
| Type | Keyed Hole Yoke |
| Yoke Dim Across Ears | 1-1/2 in (3.81 cm) |
| Yoke Style | ISR |
| Yoke Type | Full Round |
Interchanges & Equivalent parts:
| 10-N-4-373 |
| 104373 |
| 104373-SP |
| 10N4373 |
| 1112273 |
| 2104-104373 |
| 2511510 |
| E104373 |
| NUJ2511510 |
| S-13675 |
| SP 10 4 373 |
| SP 104373 |
| TWD104373 |
