1.5 POINTS

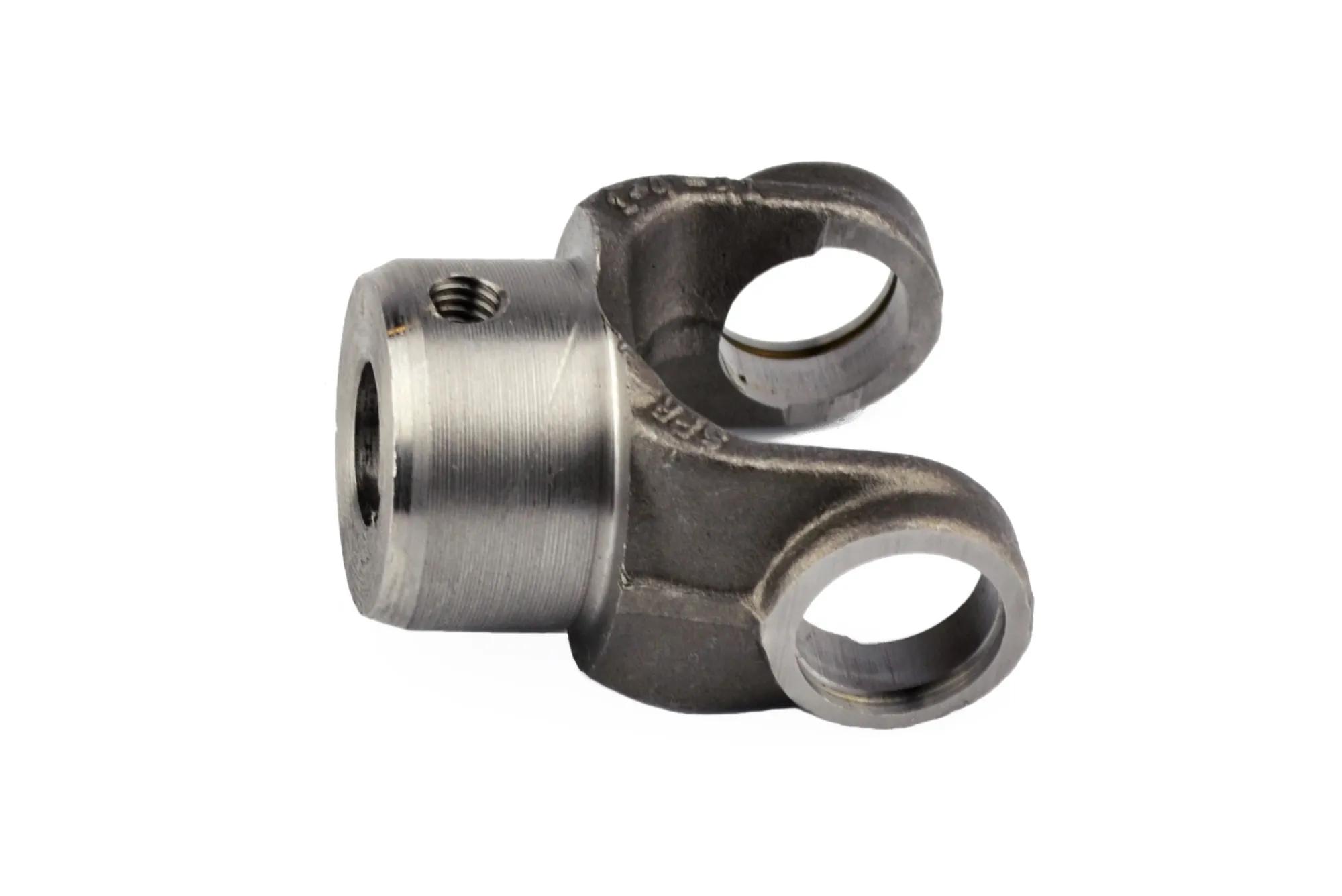

1110 S/R END YOKE
#SPI1-4-783
Specifications
| Bearing Cap Diameter | 15/16 in (2.39 cm) |
| Center Line to End of Hub | 2-1/4 in |
| Hub Diameter | 1-11/16 in |
| Involute Spline | No |
| Key Way Location | 12 |
| Material | Steel |
| Mount Hole Diameter (in.) | 3/4 in (1.91 cm) |
| Outside Yoke Dimension (in.) (E) | 2.656 |
| Series | 1110 |
| Set Screw Location (W) | 3 |
| Set Screw Size | 3/8 in (0.97 cm) |
| Slot Width | 3/16 in (0.48 cm) |
| Type | Keyed Hole Yoke |
| UPC | 737238239321 |
| Use W/ Tubing OD And Wall | 4 in (10,16 cm) x 9/64 in (0,36 cm), (10 GA),4-61/64 in (12,59 cm) x 17/64 in (0,68 cm), (7 GA) |
| Yoke Style | SR |
Interchanges & Equivalent parts:
| 1-4-2543 |
| 142543 |
| E14783 |
| SP 14783 |
| TWD14783 |
| 1-4-783 |
