2 POINTS

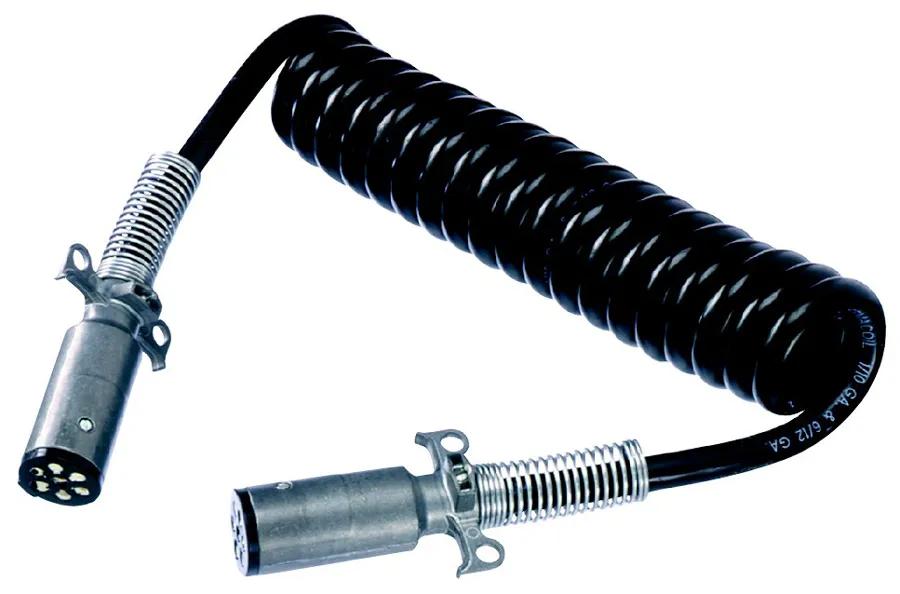

12FT PCOIL 6/12-1/10GA/PPLUG
#PHI22-4321
Product Overview
For Standard 7-Way Applications, Non-ABS Equipped Trailers, Good Ratings For Recoil Memory, Chemical Resistance & Abrasion Resistance, Zinc Die-Cast Plugs, Reinforced For Durability
Features & Benefits
- As recommended practice, use tracker bar spring kit or pogo stick to support cable assemblies with longer leads
- Flexible from -87F to 150F (-66C to 66C)
- For standard 7-Way applications, NON-ABS equipped trailers
- Good recoil memory, chemical and abrasion resistance
- Meets SAE J560, J2222
- QCP⢠cartridge is field replacable in under two minutes!
- The WEATHER-TITE⢠PERMAPLUG⢠seal blocks contaminants from entering the electrical system
Specifications
| Application | Wire & Cable Protection |
| Color | Black |
| Diameter | 1/2 in (1.27 cm) |
| Hole Diameter | 7/16 in (1.12 cm) |
| Inside Diameter | 5/16 in (0.79 cm) |
| Length | 12 ft (3.66 m) |
| Make | Grote |
| Material | Metal |
| Quantity | 1 |
| Temperature Range | -67°C (-90°F) to 51°C (125°F) |
| Type | Coiled |
Specifications
| Gauge | 6/12, 1/10 GA |
| Package | Bagged |
