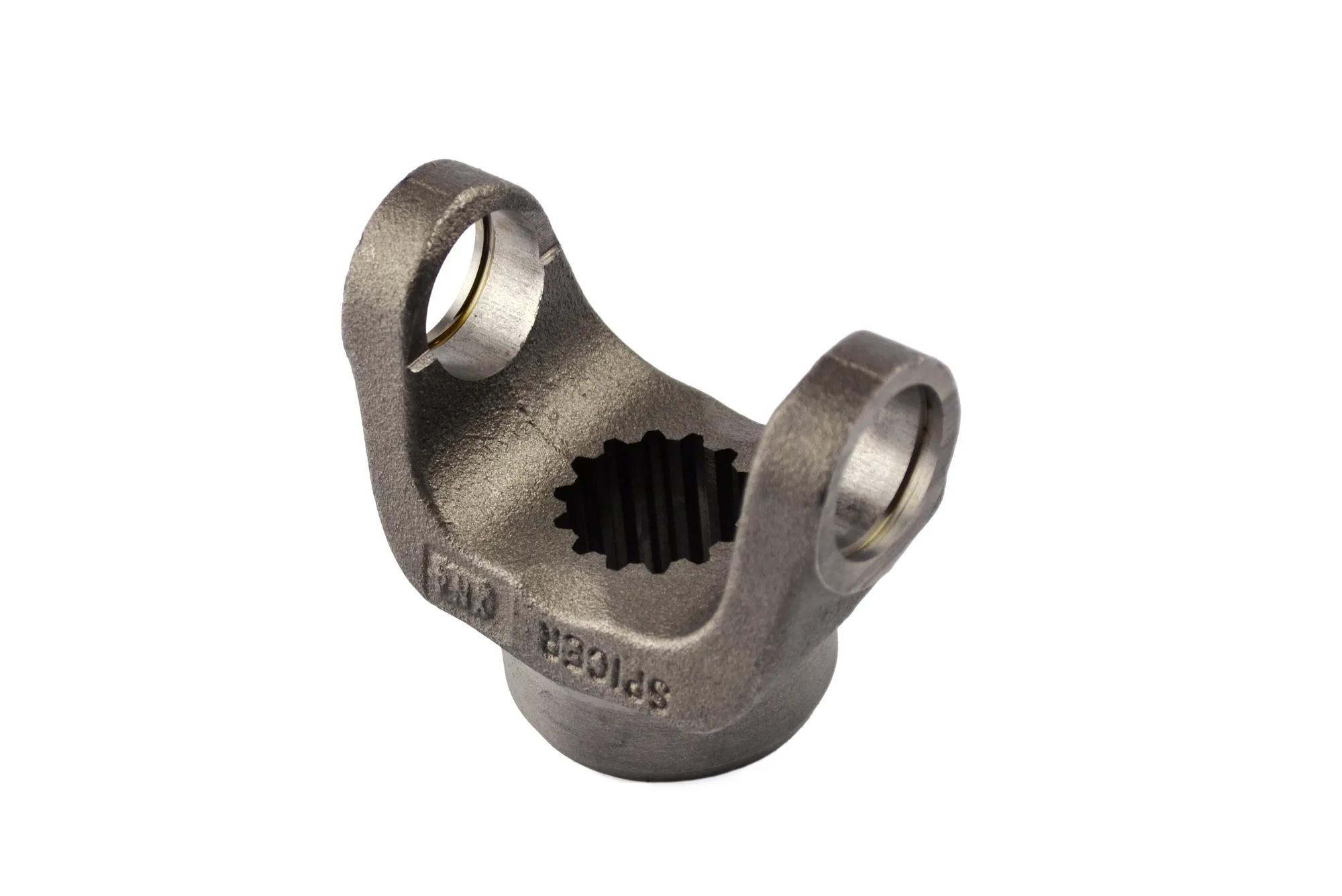

1310 Series Splined Hole End Yoke, Steel, 2.12 in Hub Diameter, Snap Ring Style
#SPI2-4-1741
Product Overview
Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot match.Drive Shaft End Yoke, Splined Hole, Steel, 2.562 in Center Line to End Hub, 2.120 in Hub Dia, 17 deg Joint Angle, 1.5 in Length Thru Hole, 3.469 in Outside Yoke, 1310, 14 Spline Count, 1.062 in Yoke Bearing Dimension, SR Yoke, 1.268 in Length
Features & Benefits
- Genuine Spicer quality and reliability
- Designed and tested by Dana for superior performance
- Snap Ring style yoke for secure fit
- Compatible with 1310 series driveshafts
Specifications
| Diamètre de chapeau de roulement | 1-1/16 po |
| Ligne centrale à la fin du moyeu | 2-9/16 po |
| Diamètre du moyeu | 2,12 po |
| Spline à développante | Yes |
| Angle d'articulation | 17 degrés |
| Longueur | 1,268 po |
| Matériel | Acier |
| Quantité | 1 |
| Séries | 1310 |
| Nombre de cannelures | 14 |
| Diamètre de spline (po) | 1-17/64 po |
| Type | Joug à trou cannelé |
| Code VMRS | 24001003 |
| Weight | 1,81 lb |
| Yoke Style | Snap Ring |
| Center Line to End Hub | 2.562 in |
| Length Thru Hole | 1.5 in |
| Outside Yoke Dimension | 3.469 in |
| Yoke Bearing Dimension | 1.062 in |
| Product Category | Joug d'extrémité d'arbre de transmission |
Interchanges & Equivalent parts:
| 1662822C1 |
| 2104-241741 |
| 241741 |
| D241741 |
| E241741 |
| SP 2 4 1741 |
| SP 241741 |
| TWD241741 |
| 2-4-1741 |
| 230144 |
