1350 B/S End Yoke, Steel, 2.25 in Hub Diameter, 3.625 in Outside Dimension
#SPI3-4-283-1
Product Overview
Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft End Yoke, Straight Round Hole, Steel, 3 in Center Line to End Hub, 1.1205 in Hole Dia, 2.250 in Hub Dia, 22 deg Joint Angle, 1.5 in Length Thru Hole, 3.625 in Outside Yoke, 1350, 1.188 in Yoke Bearing Dimension, BS Yoke

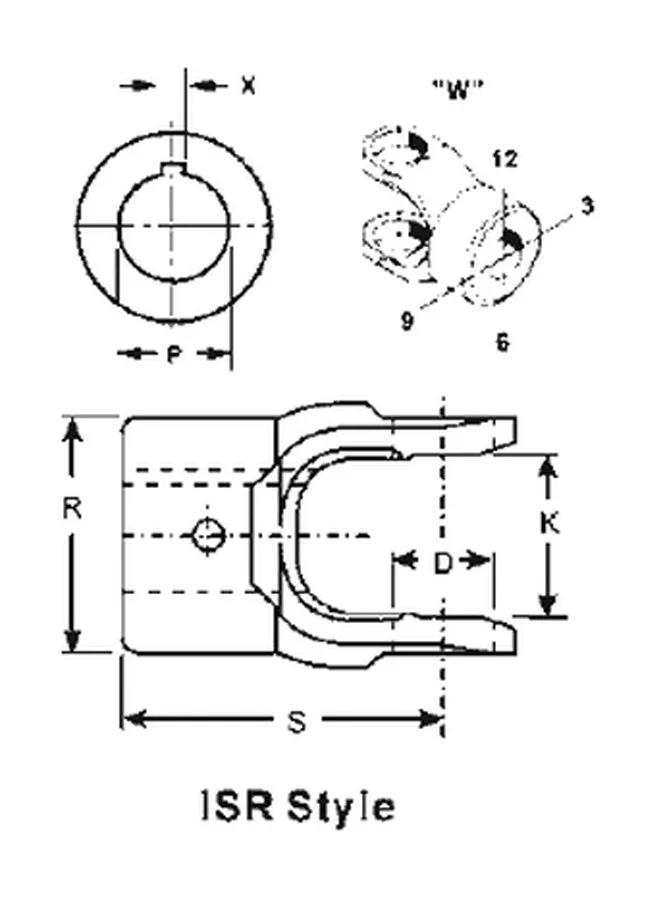

Specifications
| Diamètre de chapeau de roulement | 1-3/16 in |
| Ligne centrale à la fin du moyeu | 3 in |
| Diamètre du moyeu | 2-1/4 po |
| Spline à développante | No |
| Angle d'articulation | 22° |
| Emplacement de la clé | 12 |
| Taille de la rainure de clavette | 5/16 po |
| Length Thru Hole (Q) | 1.5 |
| Material | Acier |
| Outside Yoke Dimension (in.) (E) | 3.625 |
| Quantity | 1 |
| Series | 1350 |
| Set Screw Location (W) | 6 |
| Set Screw Size | 3/8 po |
| Type | Embout à trou claveté |
| VMRS Code | 22003072 |
| Weight | 2,51 lb |
| Yoke Style | BS |
| Center Line to End Hub | 3 in |
| Hole Diameter | 1,1205 po |
| Length Thru Hole | 1.5 in |
| Outside Yoke Dimension | 3.625 in |
| Yoke Bearing Dimension | 1.188 in |
| Product Category | Embout de cardan |
Interchanges & Equivalent parts:
| 3-4-283 |
| 135-N-4-283-1 |
| 135N42831 |
| 2104-342831 |
| 342831 |
| 342831S |
| D342831 |
| E342831 |
| S-D774 |
| SP 3 4 283 1 |
| SP 342831 |
| TWD342831 |
| 3-4-283-1 |
