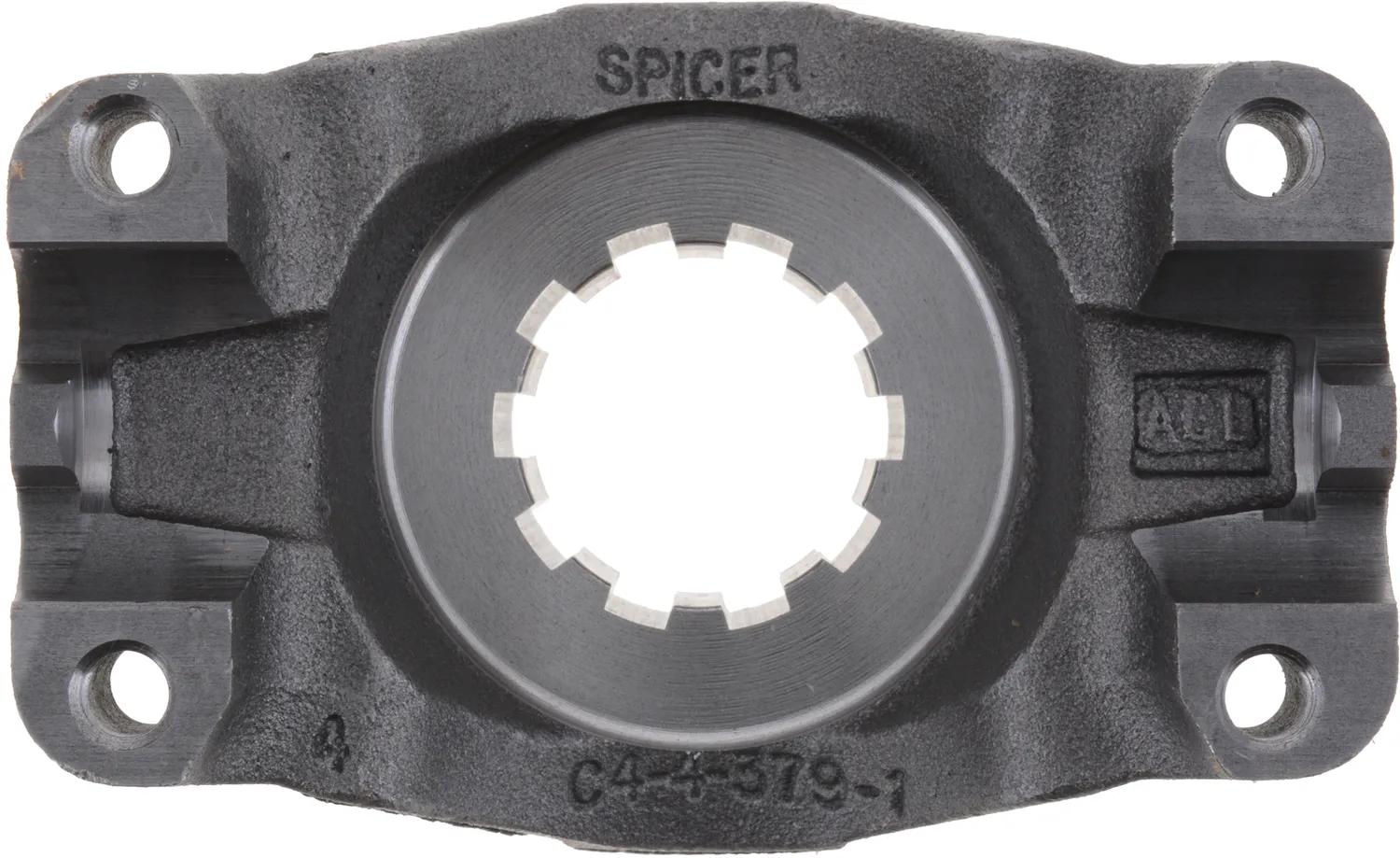

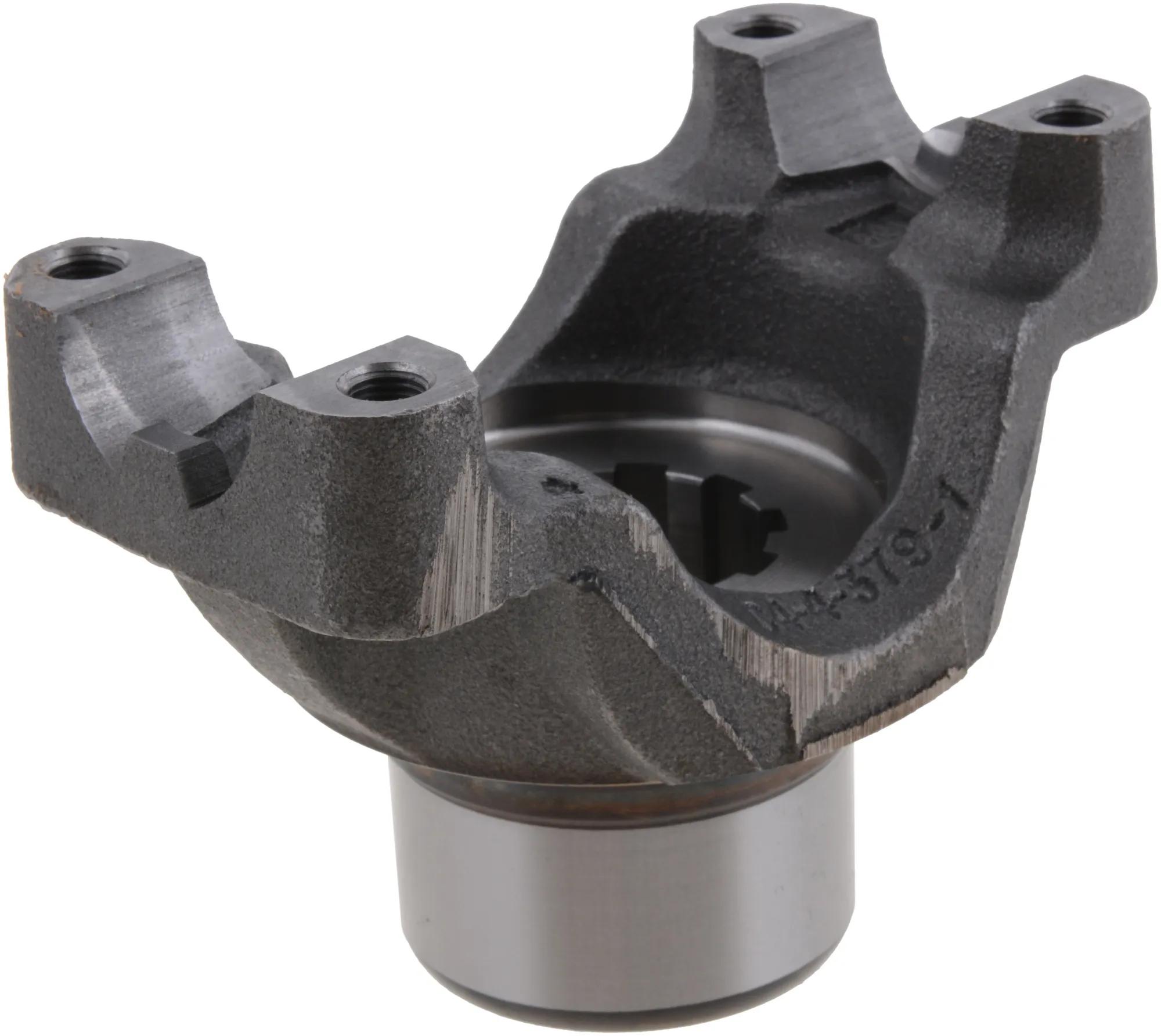

1550 B/S END YOKE
#SPI4-4-2041-1
Specifications
| Base To Hole Center (A) | 1-3/16 in |
| Bearing Cap Diameter | 1-3/8 in |
| Bearing Diameter (in.) (C) | 1.575 |
| Bearing Diameter (Max) | 1.5752 |
| Bearing Diameter (Min) | 1.5747 |
| Center Line to End of Hub | 4 in |
| Fits Tube Wall | 0.083 |
| For Use With | Outward sliding joint |
| Hub Diameter | 2-3/8 in |
| Involute | No |
| Involute Spline | No |
| Joint Angle | 22 deg |
| Length Thru Hole (Q) | 2.188 |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 4.964 |
| Series | 1550 |
| Shoulder Length (in.) (G) | 0.875 |
| Spline Diameter | 1-3/4 in |
| Spline End To Brg Shoulder (Y) | 9.5 |
| Spline End To Weld (in.) (K) | 10.625 |
| Type | Splined Hole Yoke |
| Yoke Style | BS |
| Yoke Type | Winged |
Interchanges & Equivalent parts:
| 4-4-2041 |
| 442041 |
| 4420411 |
| D4420411 |
| E4420411 |
| SP 4 4 2041 1 |
| SP 4420411 |
| 4-4-2041-1 |
