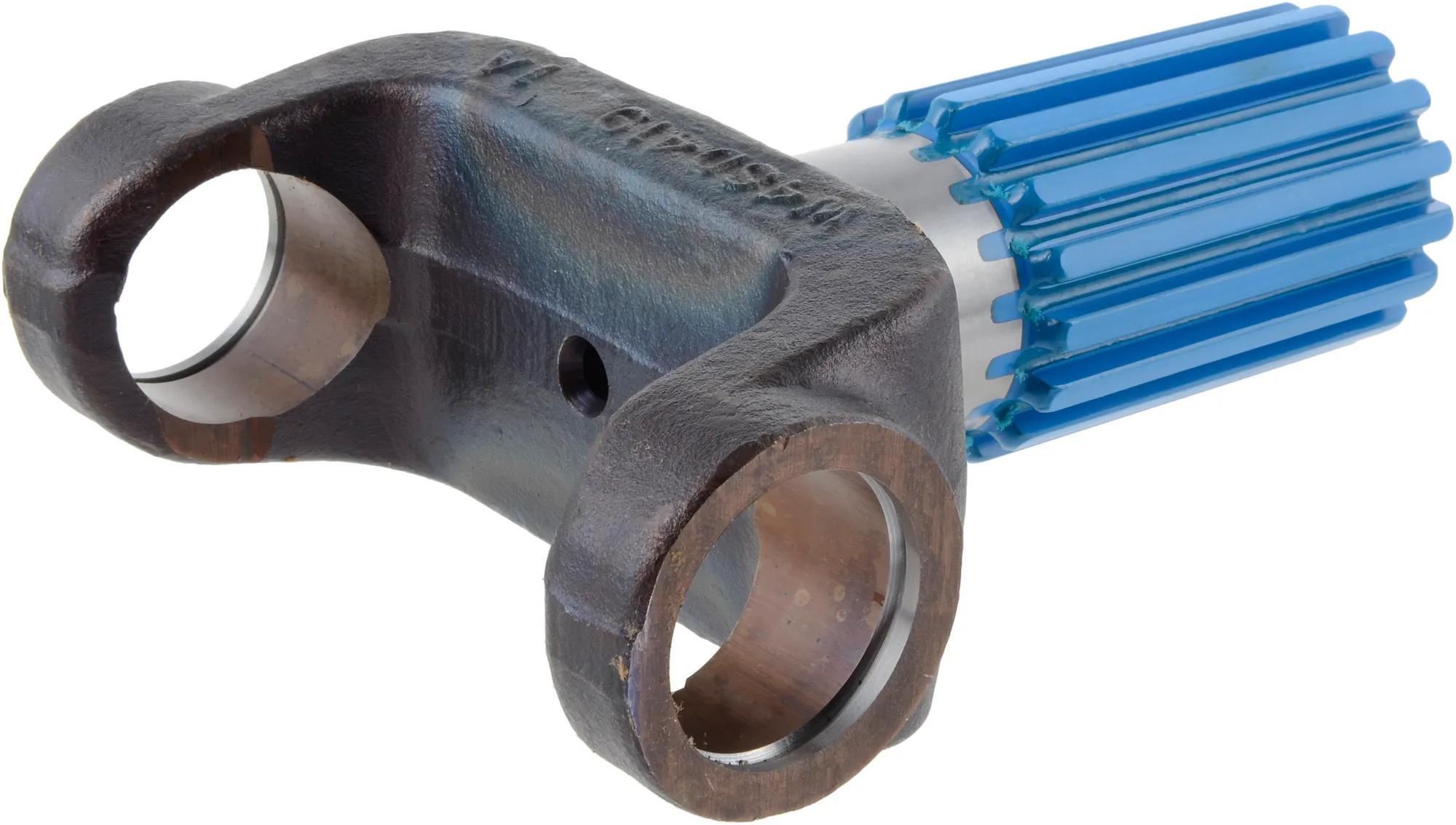

1550 YOKE SHAFT
#SPI4-82-211
Specifications
| Bearing Diameter (in.) (C) | 1.772 |
| Bearing Diameter (Max) | 1.7721 |
| Bearing Diameter (Min) | 1.7716 |
| Butt Diameter (in.) (F) | 3.321 |
| Fits Tube Wall | 0.095 |
| For Use With | Joint coulissant vers l'extérieur |
| Involute | No |
| Shoulder Diameter (in.) (B) | 2.188 |
| Shoulder Length (in.) (G) | 0.812 |
| Spline End To Brg Shoulder (Y) | 7.469 |
| Spline End To Weld (in.) (K) | 8.562 |
| Spline O.D. | 1.75 |
