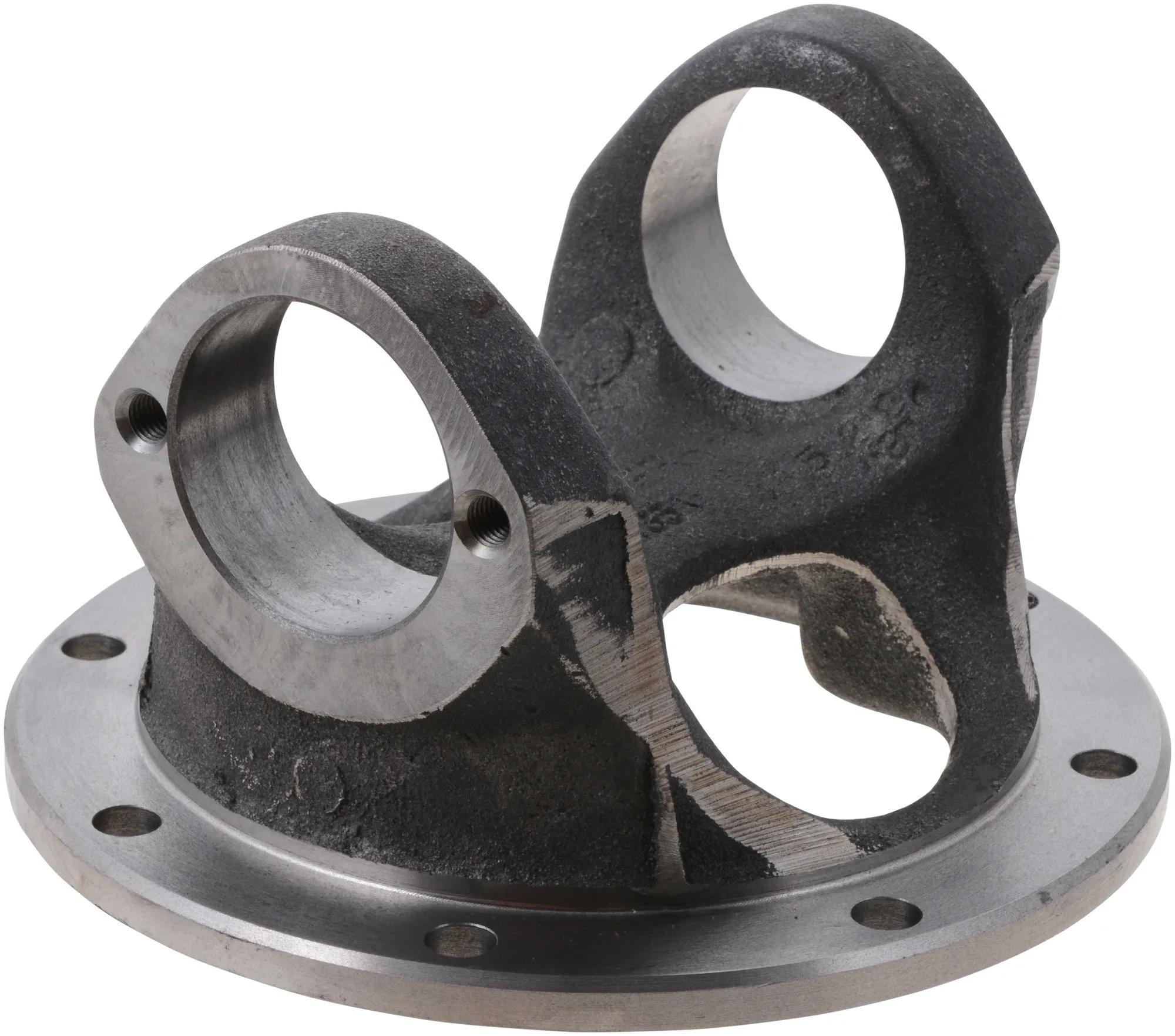

1610 FLANGE YOKE
#SPI5-2-279
Specifications
| Base To Hole Center (A) | 1-1/8 in |
| Bearing Cap Diameter | 1-7/8 in |
| Bearing Diameter (in.) (C) | 1.772 |
| Bearing Diameter (Max) | 1.7721 |
| Bearing Diameter (Min) | 1.7716 |
| Center Line to End of Hub | 3-1/2 in |
| Fits Tube Wall | 0.095 |
| Flange Face to Centerline | 2-3/4 in |
| Flange Or Swing Dia. (in.) (A) | 6.875 |
| For Use With | Outward sliding joint |
| Involute | No |
| Involute Spline | No |
| Joint Angle | 22 deg |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 5.312 |
| Series | 1610 |
| Shoulder Length (in.) (G) | 0.812 |
| Spline End To Brg Shoulder (Y) | 7.469 |
| Spline End To Weld (in.) (K) | 8.562 |
| Type | Flanged Yoke |
Interchanges & Equivalent parts:
| 124496R1 |
| 2104-52279 |
| 38MU231 |
| 52279 |
| 52279-SP |
| 52279S |
| D52279 |
| E52279 |
| SP 5 2 279 |
| SP 52279 |
| TIF01091 |
| TWD52279 |
| 5 2 279 |
| 5-2-279R |
| N52279 |
| S-A581 |
| 5-2-279 |
