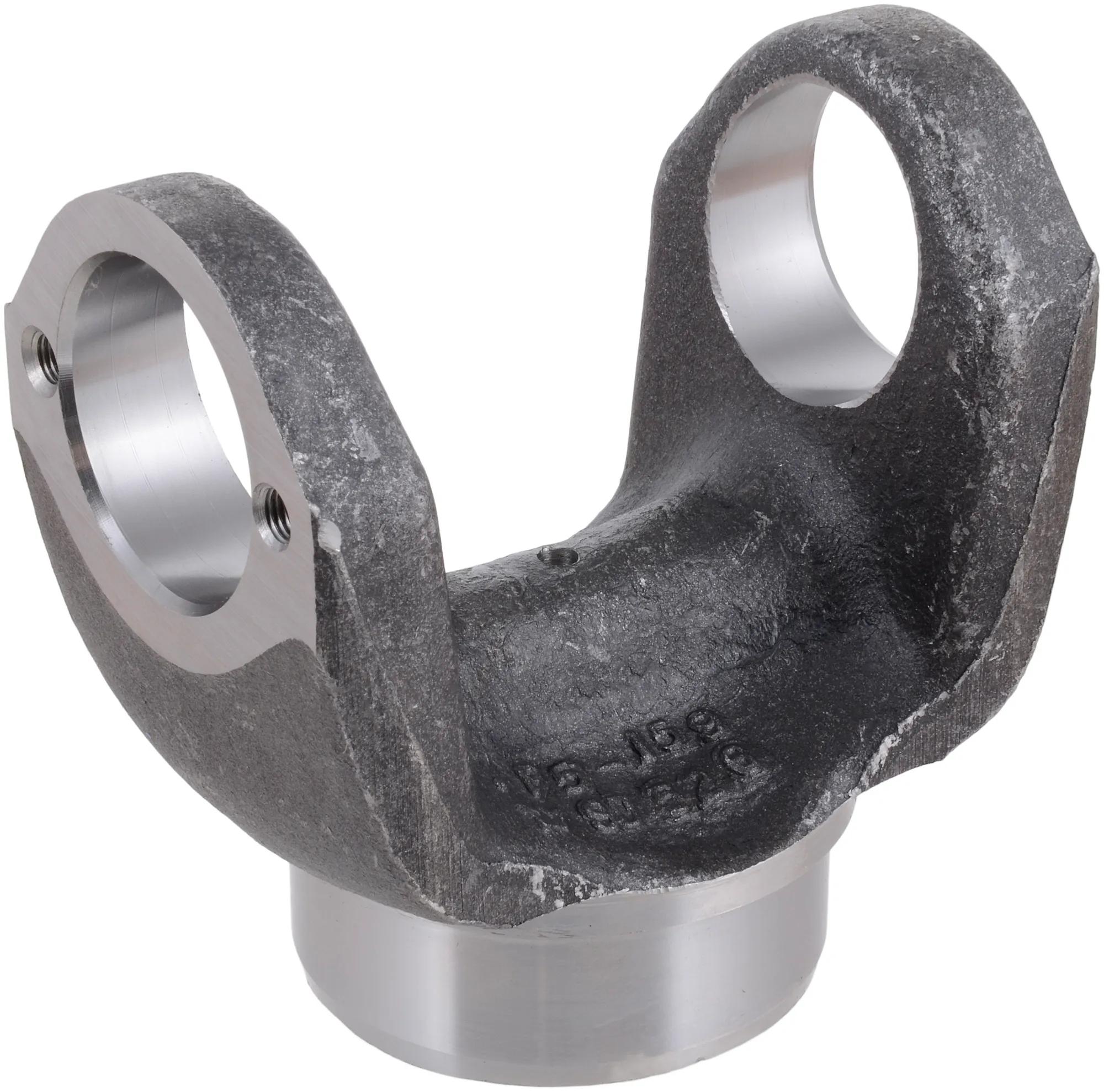

1610 TUBE YOKE
#SPI5-28-627
Specifications
| Base To Hole Center (A) | 1-5/16 in |
| Bearing Cap Diameter | 1-7/8 in |
| Center Line to End of Hub | 6-13/16 in |
| Centerline to Point of Weld | 3 in |
| Design | BP |
| Fits Tube Wall (S=Seam W=Weld) | .134-WELDED |
| Involute Spline | Yes |
| Joint Angle | 35 & 27 deg |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 5.312 |
| Series | 1610 |
| Fits Tube Wall | 0.083 |
Interchanges & Equivalent parts:
| 2035521 |
| 2104-528627 |
| 38MU3203 |
| 38MU3203P1 |
| 528627 |
| 528627-SP |
| 528627S |
| 572266 |
| D528627 |
| E528627 |
| SP 5 28 627 |
| SP 528627 |
| TWD528627 |
| 356623C1 |
| 5 28 627 |
| 5-28-627R |
| N528627 |
| S-5666 |
| 5-28-627 |
