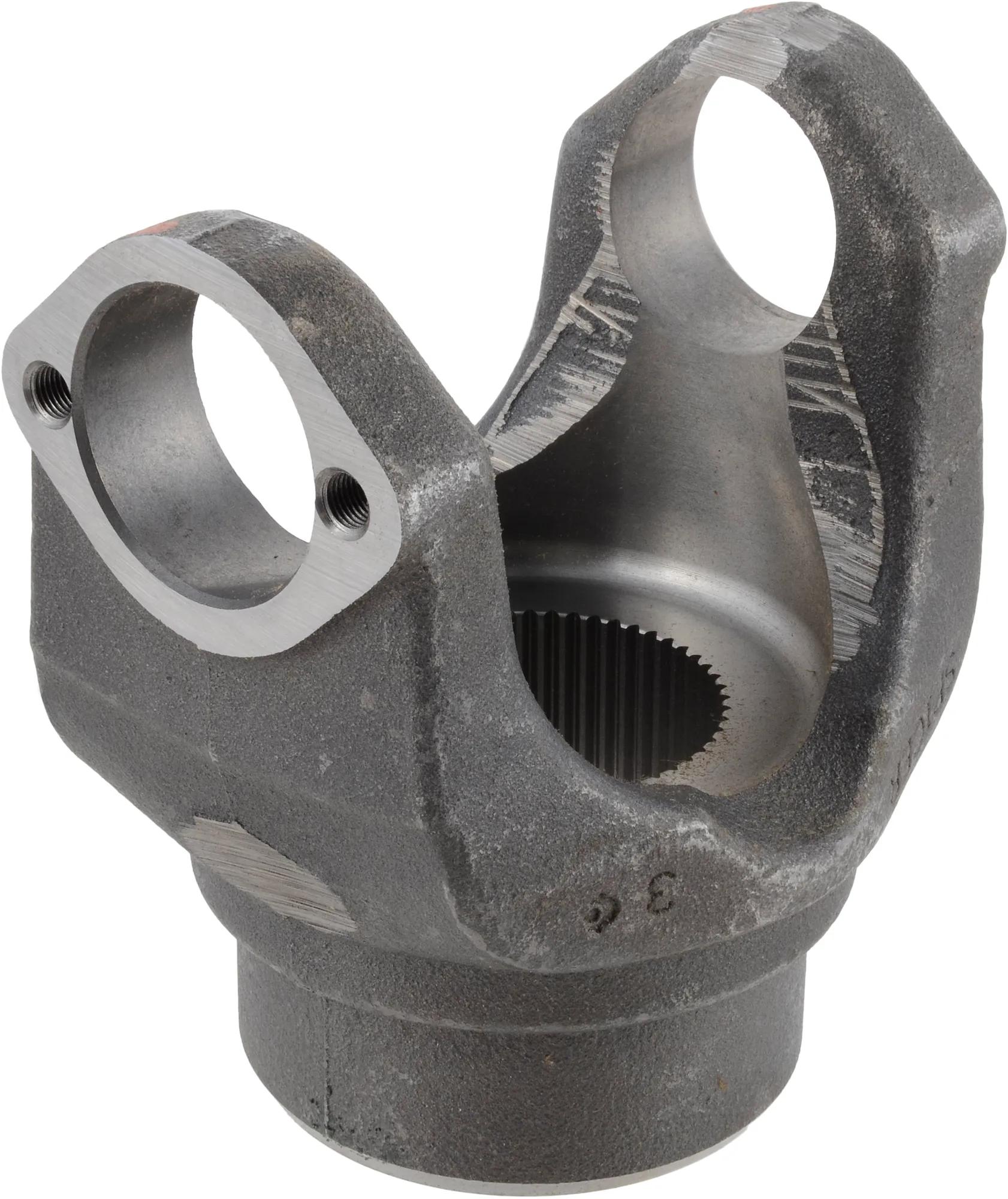

1710 B/P END YOKE
#SPI6-4-9231
Specifications
| Base To Hole Center (A) | 3-7/32 in |
| Bearing Cap Diameter | 1-15/16 in |
| Bearing Diameter (in.) (C) | 1.575 |
| Bearing Diameter (Max) | 1.5752 |
| Bearing Diameter (Min) | 1.5747 |
| Center Line to End of Hub | 5-5/8 in |
| For Use With | Outward sliding joint |
| Involute | No |
| Involute Spline | Yes |
| Joint Angle | 30 deg |
| Length Thru Hole (Q) | 2.75 |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 6.094 |
| Series | 1710 |
| Shoulder Length (in.) (G) | 0.875 |
| Spline Diameter | 2-51/64 in |
| Spline End To Brg Shoulder (Y) | 8.23 |
| Spline End To Weld (in.) (K) | 9.35 |
| Type | Splined Hole Yoke |
| Yoke Style | BP |
| Yoke Type | Full Round |
Interchanges & Equivalent parts:
| 171MU52P80 |
| 2104-649231 |
| 649231 |
| 649231-SP |
| E649231 |
| SP 6 4 9231 |
| SP 649231 |
| 6-4-9231 |
