| Bearing Cap Diameter |
1-15/16 in |
| Bearing Diameter (in.) (C) |
1.575 |
| Bearing Diameter (Max) |
1.5752 |
| Bearing Diameter (Min) |
1.5747 |
| C-Bore Depth |
0.14 |
| Center Line to End of Hub |
5-25/64 in |
| For Use With |
Outward sliding joint |
| Hub Diameter |
3-1/4 in |
| Includes Slinger/Plug |
Yes |
| Involute |
Yes |
| Involute Spline |
No |
| Length Thru Hole (Q) |
2.328 |
| Material |
Steel |
| Outside Yoke Dimension (in.) (E) |
6.19 |
| Series |
1710 |
| Shoulder Length (in.) (G) |
0.88 |
| Spline Diameter |
2-25/64 in |
| Spline End To Brg Shoulder (Y) |
8.75 |
| Spline End To Weld (in.) (K) |
9.875 |

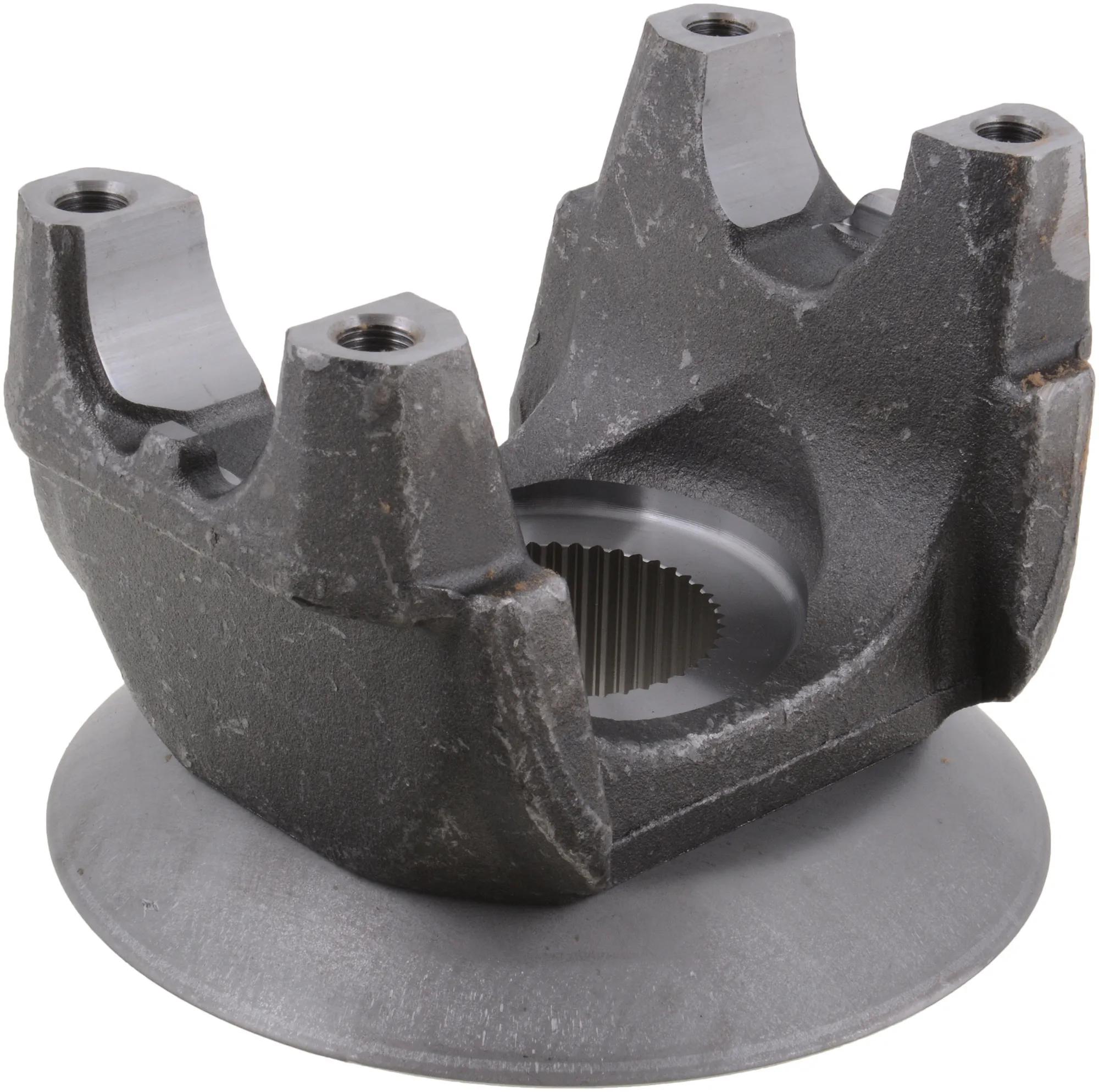

| Type |
Splined Hole Yoke |
| Yoke Style |
HR |
| Yoke Type |
Winged |
