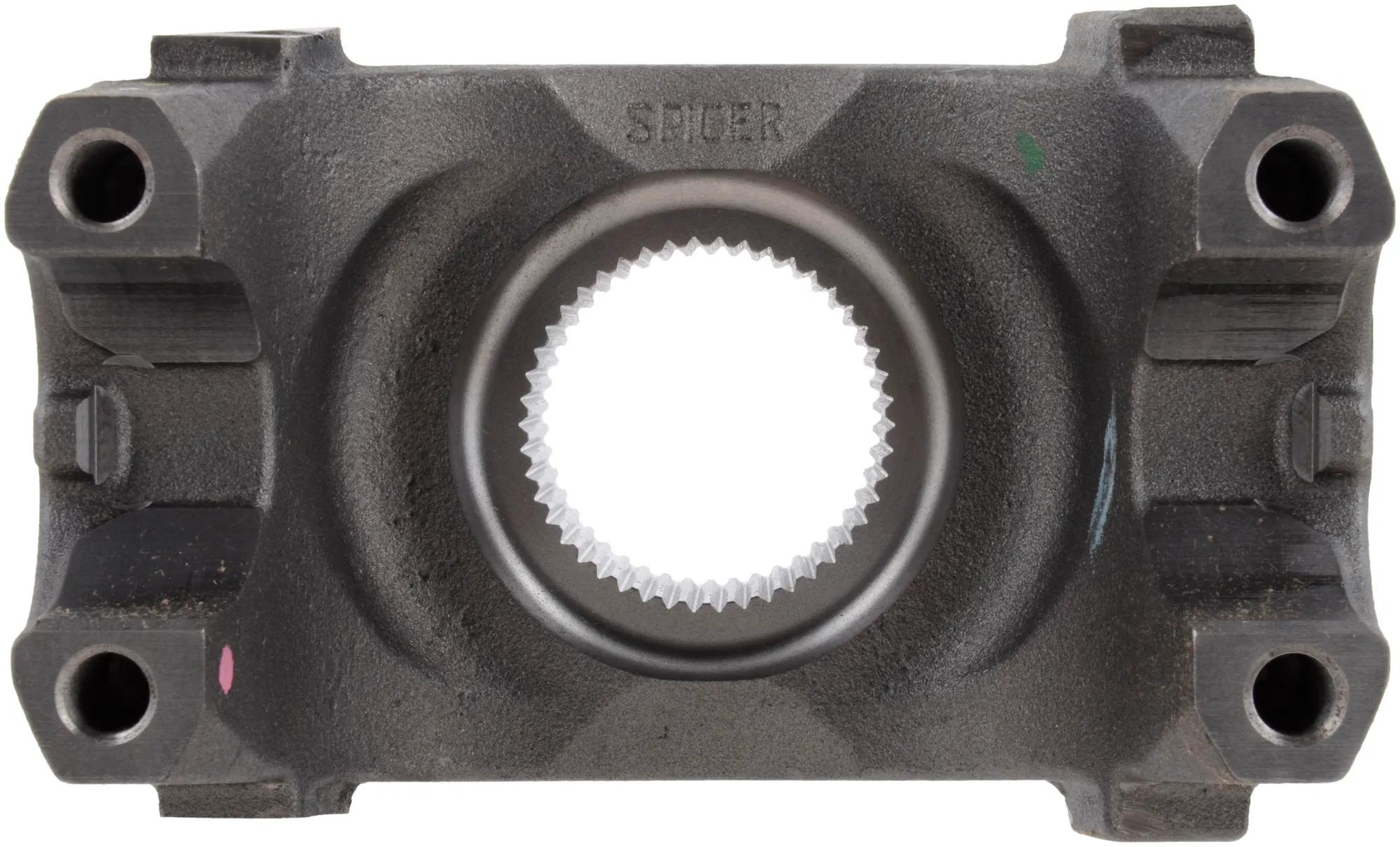

1760 Series Splined Hole End Yoke, Steel, HR Style, 2.875 in Hub Diameter, 7.094 in Outside Dimension
#SPI6.3-4-821-1
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.Differential End Yoke, Splined Hole, Steel, 5.5 in Center Line to End Hub, 2.875 in Hub Dia, 30 deg Joint Angle, 2.75 in Length Thru Hole, 7.094 in Outside Yoke, 1760, 46 Spline Count, 1.938 in Yoke Bearing Dimension, HR Yoke, 2.39 in Length
Specifications
| Bearing Cap Diameter | 1-15/16 in |
| Center Line to End of Hub | 5-1/2 in |
| Hub Diameter | 2-7/8 in |
| Includes Slinger/Plug | No |
| Involute Spline | Yes |
| Joint Angle | 30 deg |
| Length | 2.39 in |
| Length Thru Hole (Q) | 2.75 |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 7.094 |
| Quantity | 1 |
| Series | 1760 |
| Spline Count | 46 |
| Spline Diameter | 2-25/64 in |
| Type | Splined Hole |
| VMRS Code | 22003072 |
| Weight | 14.9 lb |
| Yoke Style | HR |
| Yoke Type | Winged |
| Center Line to End Hub | 5.5 in |
| Length Thru Hole | 2.75 in |
| Outside Yoke Dimension | 7.094 in |
| Yoke Bearing Dimension | 1.938 in |
| Product Category | Differential End Yoke |
Interchanges & Equivalent parts:
| 300103208 |
| 6348211 |
| N63-4-821-1 |
| 15636788 |
| 1660416C1 |
| 2104-6348211 |
| 30010-3208 |
| 6348211-SP |
| 6348211S |
| D6.3-4-821-1 |
| D6348211 |
| E6348211 |
| E8HZ 4865-B |
| SD6348211 |
| SP 6.3 4 821 1 |
| SP 6348211 |
| TWD6348211 |
| 6.3 4 821 1 |
| N6.3-4-821-1 |
