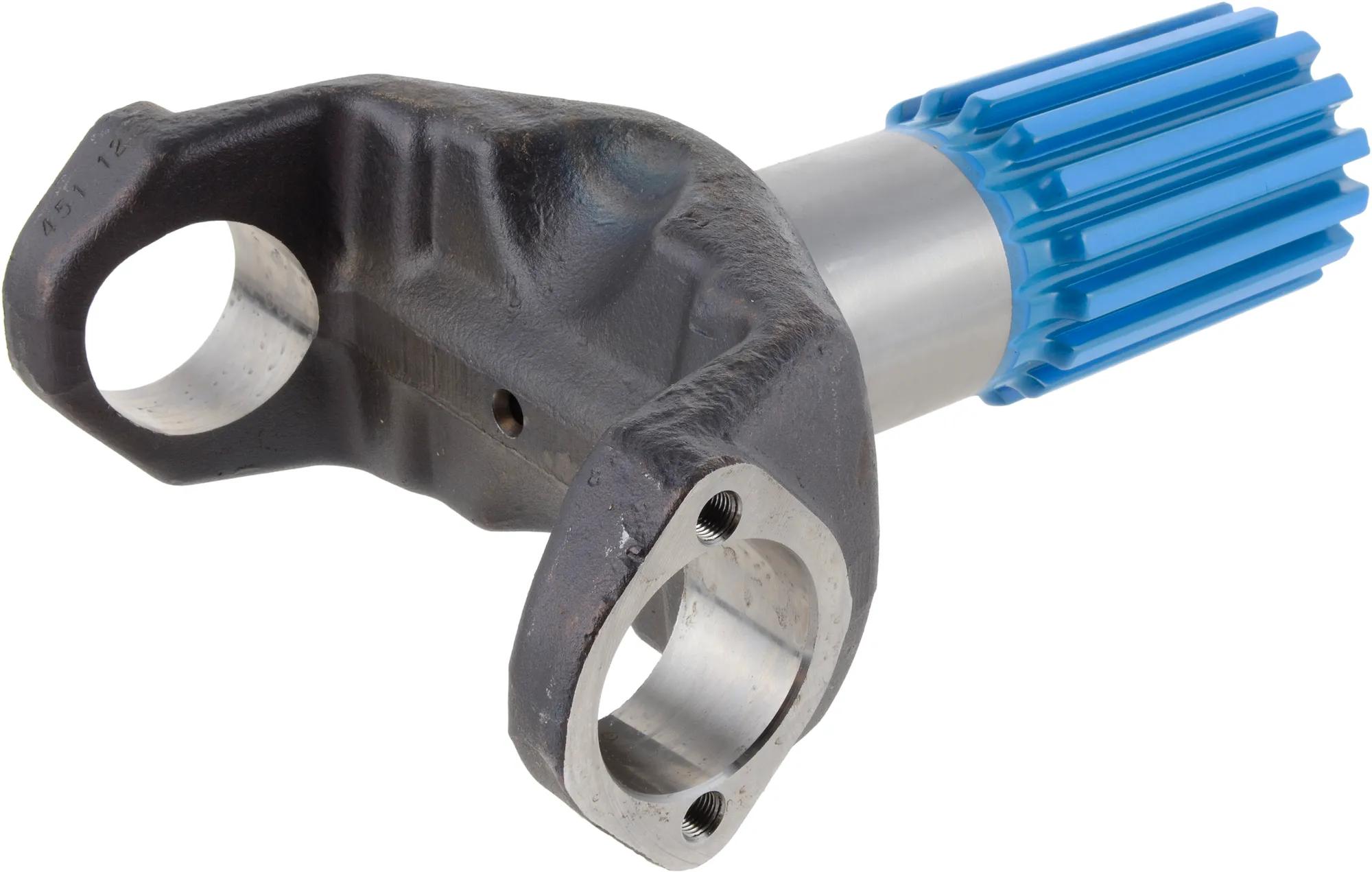

1810 YOKE SHAFT
#SPI6.5-82-451-12
Specifications
| Bearing Diameter (in.) (C) | 2.362 |
| Bearing Diameter (Max) | 2.3622 |
| Bearing Diameter (Min) | 2.3617 |
| Butt Diameter (in.) (F) | 4.243 |
| Fits Tube Wall | 0.259 |
| For Use With | Fourche de l'arbre secondaire ou contrebride |
| Involute | No |
| Shoulder Diameter (in.) (B) | 2.875 |
| Shoulder Length (in.) (G) | 1.312 |
| Spline End To Brg Shoulder (Y) | 4 |
| Spline End To Weld (in.) (K) | 5.312 |
| Spline O.D. | 2.35 |
