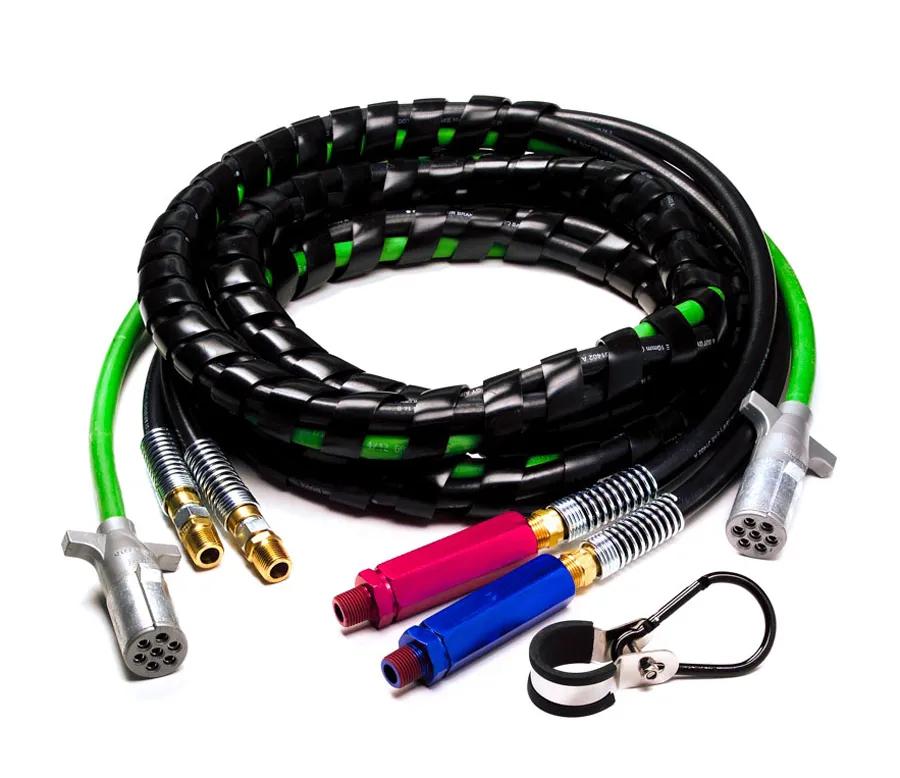

3-In-1 UltraLink™ Power Cord Set with Air Hose, ABS, Advanced Polymer Jacketing, 12 ft, Black
#GRO81-3112
Product Overview
Grote carries an extensive line of air products required for optimum system performance. Take the worry out of service system maintenance with Grote’s 3-in-1 UltraLink™ Power Cord and Air Assemblies featuring rugged straight rubber air line hoses, advanced polymer jacketing for abrasion protection, and Grote’s UltraLink™ Power Cords.Power Cord Set, Air Hose, Black, Advanced Polymer Jacketing, 4/12 GA, 2/10 GA, 1/8 GA Gauge, SAE J560, SAE J2394, DOT J1402, DOT FMVSS 106 Standards, ABS, -55 to 190 °F Temperature Range, 12 ft Length
Features & Benefits
- UltraLink Power Cord utilizes Grote’s crush resistant plug
- Heavy Duty zinc die-cast plugs are filled with elastomeric material that acts as potting to seal solid brass terminals from moisture and corrosion
- Anodized gladhandles provide superior corrosion resistance
- Black Rubber Air Lines meet DOT J1402 Type A regulations
- Air Line meets DOT FMVSS No. 106 regulations and are resistant to gasoline, diesel fuel, oil and other chemicals
- Includes a swivel fitting for the tractor-end connection
- Ensures proper power distribution to critical systems
- Designed to withstand high temperatures without deformation
- A special adhesive bonds the cable to the plug, eliminating the need for a support spring and preventing moisture from entering the back of the plug
- Air lines have 3/8 in ID and 225 psi working pressure
- High-end spiral wrap protects the cable and air lines from chaffing and kinking
- Includes hanging clamp for easy installation
Specifications
| Color | Black |
| Length | 12 ft |
| Type | 3-in-1 ABS Electrical & Air Assemblies |
| Gauge | 4/12 GA, 2/10 GA, 1/8 GA |
| Standards | SAE J560 / J2394 (ABS cords), DOT J1402 Type A, DOT FMVSS 106 |
| Style | ABS |
| Temperature Range | -55 to 190 °F |
| Product Category | Power Cord Set |
Interchanges & Equivalent parts:
| 30-1157 |

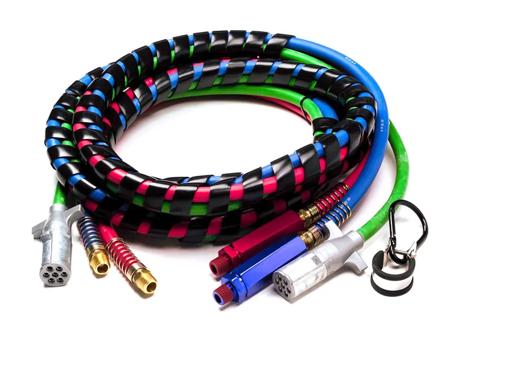

| 81-3212 |
| 302151 |
| 81-3112 |
| 422656 |
| PT5001A |
| 451111 |
| 451111TRA |
| GRO813112 |
