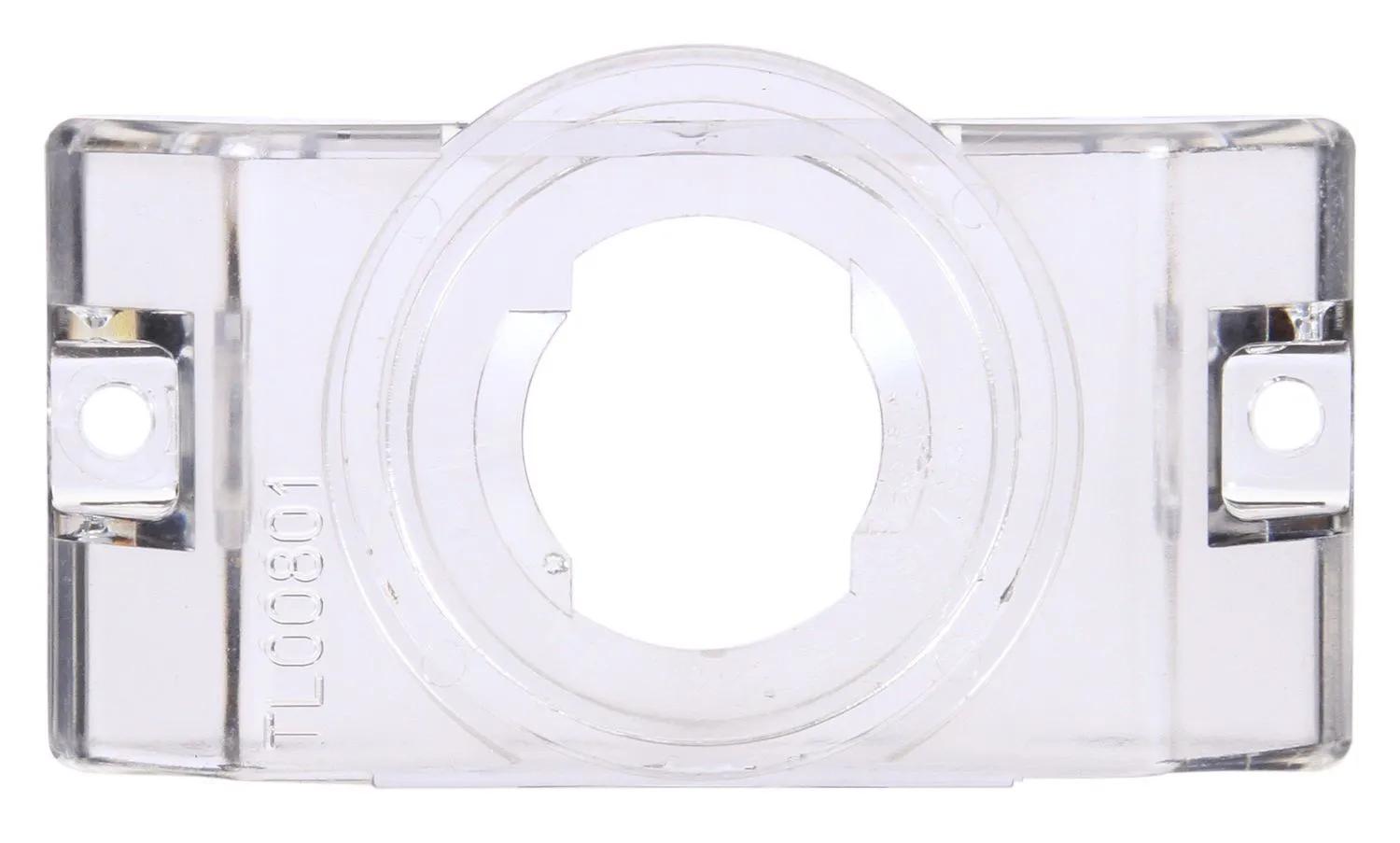

30 Series, Bracket Mount, 30 Series Lights, Used In Round Shape Lights, Clear Polycarbonate, 2 Screw Bracket Mount, PL-10, Stripped End/Ring Terminal, Kit
#TRL30403
Product Overview
30 Series, Bracket Mount, 30 Series Lights, Used In Round Shape Lights, Clear Polycarbonate, 2 Screw Bracket Mount, PL-10, Stripped End/Ring Terminal, Kit
Features & Benefits
- High-impact plastic mount
- Quick cam-on, cam-off lamp installation
- Suitable for PC requirements on a 45-degree angle using LED or incandescent PC-rated/combination lamps
- Not recommended for use with Signal-Stat LED lamps
Specifications
| Bracket Height | 2-5/32 in (5.49 cm) |
| Bracket Material | Polycarbonate |
| Depth | 1 in (2.54 cm) |
| Height | 2-5/32 in (5.49 cm) |
| Kit (Y/N) | Yes |
| Lamp Type | Model 30 Product |
| Length | 3-29/32 in (9.93 cm) |
| Material | Polycarbonate |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Bracket Mount |
| Series | 30 Series |
| Shape | Round |
| VMRS Code | 034-004-036 |
| Weight | 0.15 lb (0.07 kg) |
| Width | 3-29/32 in (9.93 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 4191523 |
| 43690 |
| 4369067050 |
| 841330403 |
| 737846 |
| 73784699 |
| 7129 |
| HT50601334 |
| TL30403 |
| TLD30403 |
| TRU30403 |
| MTL030403 |
| 16309 |
| 30403 |
| 9396 |
| LIT30403 |
| TL 30403 |
| 43960GR0 |
| GRT42180 |
| GRT43690 |
| GRT43960 |
| TKL30403 |
