3In Wet-R-Dri Manually Metering/Locking Butterfly Valve, Aluminum, TTMA Flange Inlet & Outlet
Product Overview

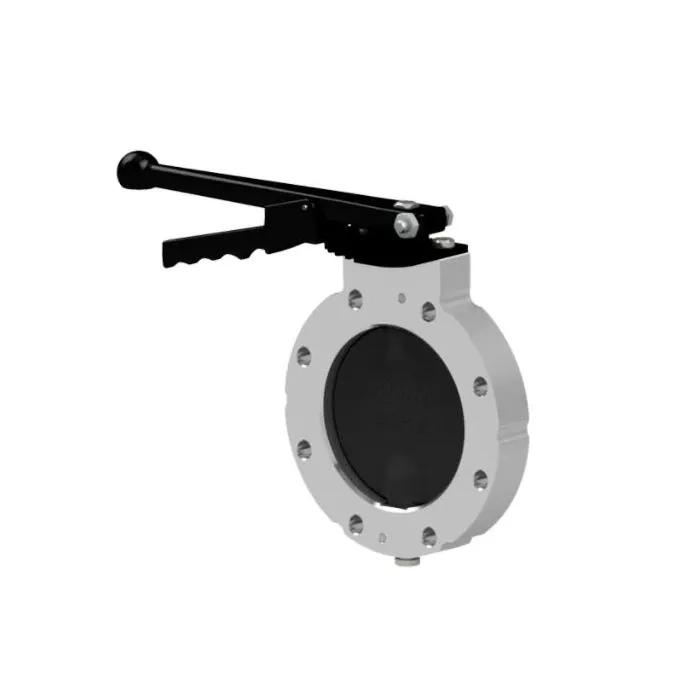

The Betts Wet-R-Dri valve is a lightweight and compact quarter-turn in-line stop valve, designed for easy maintenance and versatility. Widely used for liquid, gaseous, or dry products, it is available in various sizes. This manual metering/locking valve features an eight-position metering locking handle that holds the disc in the desired position. The valve body is offered in aluminum, cast iron, or stainless-lined options, with coatings available for enhanced chemical resistance and extended service life. The disc seal and shaft O-rings come in multiple materials to optimize chemical resistance and service temperature range. The bolt pattern matches TTMA piping flange dimensions.Wet-R-Dri Butterfly Valve, TTMA Flange Inlet, TTMA Flange Outlet, Manually, Metering/Locking, Aluminum, Nitrile Seal, 3 in Inlet, 75 psi, 3 in Outlet, Standards: ISO 9001:2015
Features & Benefits
- Lightweight and compact quarter-turn in-line stop valve
- Eight-position metering locking handle for precise flow control
- Available in aluminum, cast iron, or stainless-lined bodies
- Coatings available for increased chemical resistance and durability
- Disc seal and shaft O-rings in various materials for optimized chemical resistance and temperature range
- Bolt pattern matches TTMA piping flange dimensions
Specifications
| Material | Aluminum |
| Application | Liquid, gaseous, or dry products |
| Finish | Coated (chemical resistant) |
| Flow Direction | In-line |
| Inlet Size | 3 in |
| Inlet Type | TTMA Flange |
| Mounting Style | Flanged |
| Operating Pressure | 75 psi |
| Outlet Size | 3 in |
| Outlet Type | TTMA Flange |
| Seal Material | Nitrile |
| Standards | ISO 9001:2015 |
| Temperature Range | Optimized per seal and O-ring materials |
| Valve Type | Manually Metering/Locking |
| Product Category | Wet-R-Dri Butterfly Valve |
| Weight | 3.5 lb |
