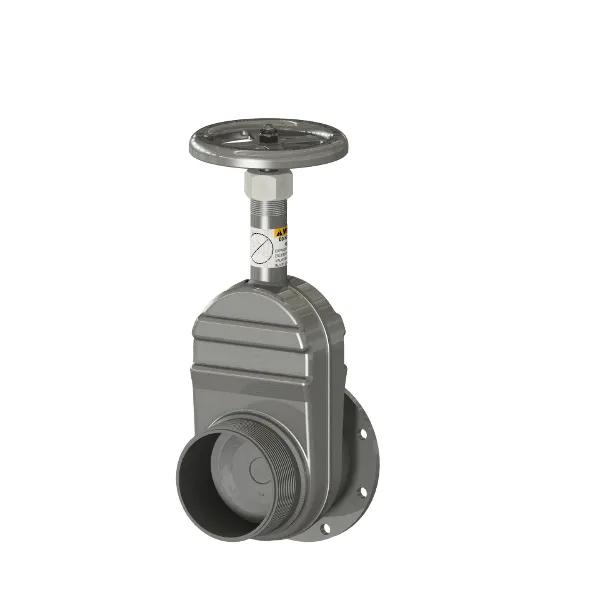

4 in Steel Manual Gate Valve, TTMA Flange x Threaded Pipe
#BETG1004
Product Overview
The Betts gate valve is an economical manually operated external stop valve featuring a double action hand wheel for efficient closure. It includes standard 316 stainless steel discs for premium corrosion resistance and an adjustable packing nut with woven PTFE-infused packing for easy stem adjustments. The metal-to-metal seal offers advantages in many applications but may be susceptible to wear and scratches. For a maintainable seal valve, consider Betts' line of replaceable O-ring seat gate valves.Gate Valve, Wheel Handle, TTMA Flange Inlet, Threaded Pipe Outlet, Manual, Steel, PTFE Seal, Brass Stem, 200 psi Burst Pressure Rating, 4 in Inlet, 4 in Outlet, 50 psi Pressure Rating, -40 to 500 °F Temperature Rating, 5.94 in Width
Features & Benefits
- Manual operation with double action hand wheel
- 316 stainless steel discs for corrosion resistance
- Adjustable packing nut with woven PTFE-infused packing
- Metal-to-metal seal design
- Economical and reliable external stop valve
Specifications
| Size | 4 in |
| Body Material | Steel |
| Burst Pressure Rating | 200 psi |
| Handle Type | Wheel |
| Inlet Size | 4 in |
| Inlet Type | TTMA Flange |
| Outlet Size | 4 in |
| Outlet Type | Threaded Pipe |
| Pressure Rating | 50 psi |
| Seal Material | PTFE |
| Stem Material | Brass |
| Temperature Rating | -40 to 500 °F |
| Valve Type | Manual |
| Width | 5.94 in |
| Product Category | Gate Valve |
| Weight | 12.5 lb |
