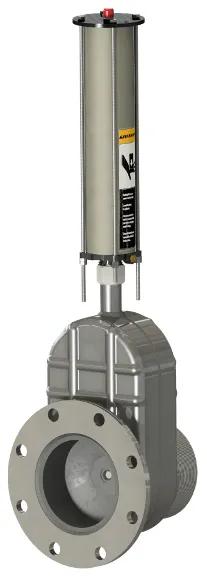

6 in Pneumatic Sliding Valve, Steel, Threaded Pipe x ANSI Flange, Air Operated
Product Overview
The Betts pneumatic sliding valve is an external self-closing stop valve designed for tanker applications. It features an air-open, spring-close cylinder requiring 90 psi line pressure to fully open. The valve includes PTFE encapsulated O-rings for a positive seal in pressure or vacuum service, and standard 316 stainless steel discs for premium corrosion resistance. The adjustable packing nut with woven PTFE-infused packing allows easy stem adjustments. The air cylinder has a maximum working temperature of 250 °F (121 °C). A fusible plug set to melt above 212 °F (100 °C) is installed in the air cylinder to release air pressure in case of fire. The valve does not contain a shear section; cargo tanks must provide suitable protection as specified in 49 CFR 178.345-8.Sliding Valve, Air Cylinder Actuated Handle, Threaded Pipe Inlet, ANSI Flange Outlet, Pneumatic, Steel, PTFE Seal, 316 Stainless Steel Stem, 6 in Inlet, 6 in Outlet, 90 psi Pressure Rating, 49 CFR 178.345-8 Standards, 250 °F Temperature Rating, 9.07 in Width
Features & Benefits
- Air open / spring close
- Teflon encapsulated seats
- TTMA, ANSI, or Sump Flange Drilling
Specifications
| Body Material | Steel |
| Handle Type | Air Cylinder Actuated |
| Inlet Size | 6 in |
| Inlet Type | Threaded Pipe |
| Outlet Size | 6 in |
| Outlet Type | ANSI Flange |
| Pressure Rating | 90 psi |
| Seal Material | PTFE |
| Standards | 49 CFR 178.345-8 |
| Stem Material | 316 Stainless Steel |
| Temperature Rating | 250 °F |
| Valve Type | Pneumatic |
| Width | 9.07 in |
| Product Category | Sliding Valve |
| Weight | 42 lb |
