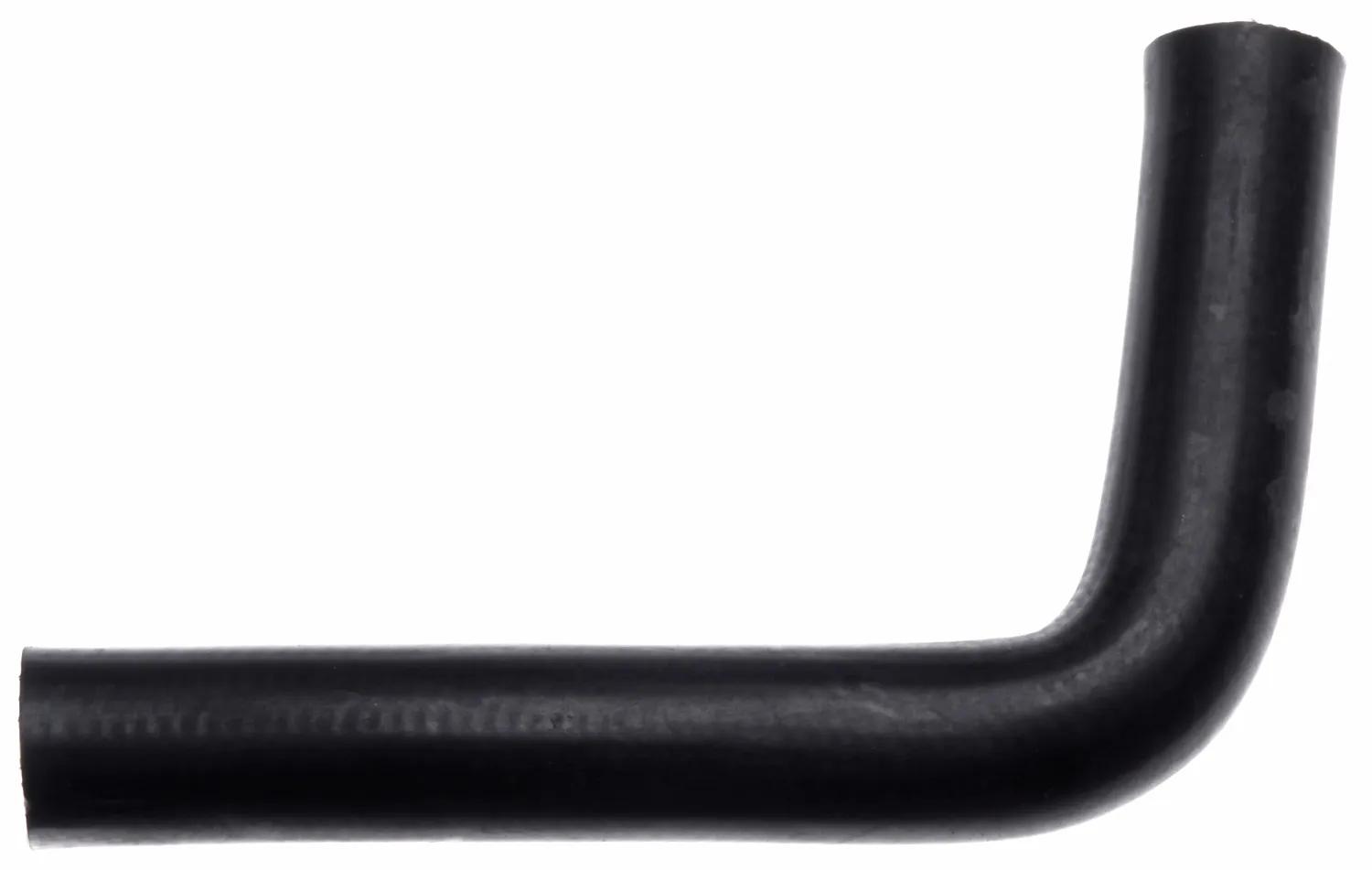

90 Degree Molded Heater Hose
#GAT28474
Features & Benefits
- Couple to hose bead fitting fastened with hose clamps
- Compatible for air and water applications. Not for conveying fuel or oil
- SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID or larger
- EPDM tube, synthetic fiber reinforcement, EPDM cover
Specifications
| Angle | 90 deg |
| Arm Length | 6 in (15.24 cm) |
| Arm Length # 1 | 4 in (10.16 cm) |
| Caution | Do not use for fuel or oil transfer applications. |
| Inside Diameter 1 (in) | 3/4 in (1.91 cm) |
| Inside Diameter 2 (in) | 3/4 in (1.91 cm) |
| Length | 10 in (25.4 cm) |
| Material | EPDM |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Weight | 0.25 lb (0.11 kg) |
Interchanges & Equivalent parts:
| 63906 |
| GYB63906 |
| 1639231 |
| 1646590 |
| 23543 |
| 294806 |
| 43906 |
| 10065640 |
| 10065675 |
| 10120065 |
| 10135307 |
| 10145119 |
| 10188037 |
| 10218423 |
| 10227419 |
| 1405531U00 |
| 1405646R00 |
| 1405670F05 |
| 14244S |
| 15077061 |
| 15522161 |
| 15596468 |
| 15732304 |
| 15736089 |
| 15833715 |
| 15940321 |
| 15979269 |
| 15987504 |
| 19506PV1A00 |
| 1L5Z 18472 AC |
| 1L5Z 18472 AF |
| 1L5Z18472AE |
| 1R3H 18K572 CB |
| 1R3Z 18472 CA |
| 21030305 |
| 21030547 |
| 21031098 |
| 21031149 |
| 21031150 |
| 25525214 |
| 25537261 |
| 25610968 |
| 25625995 |
| 8724595D31 |
| 8970189141 |
| 8970189142 |
| 90299661 |
| 9241001P00 |
| 924110B010 |
| B80411 |
| 10385281 |
| 15123654 |
| 15258060 |
| 15875003 |
| D9VH 18D334 AA |
| E0EH 18D334 BA |
| E1EH 18D359 CA |
| E4DZ 18472 D |
| E6VY 18472 B |
| E9DZ 18472 D |
| E9SZ 18402 B |
| E9SZ 18B402 B |
| F32Z 8075 A |
| F3XY 18472 C |
| F3XY 18472 H |
| F4XY 18472 B |
| HH8474 |
| JF0115189 |
| JR3Z 18472-E |
| KH-57 |
| KHM-121 |
| KJ0115261 |
| KL1115183 |
| MH-9474 |
| MH71 |
| 10441374 |
| 25844416 |
| 10017940 |
| 5031965 |
| 5047388AC |
| 5047388AD |
| 52363481 |
| TP |
