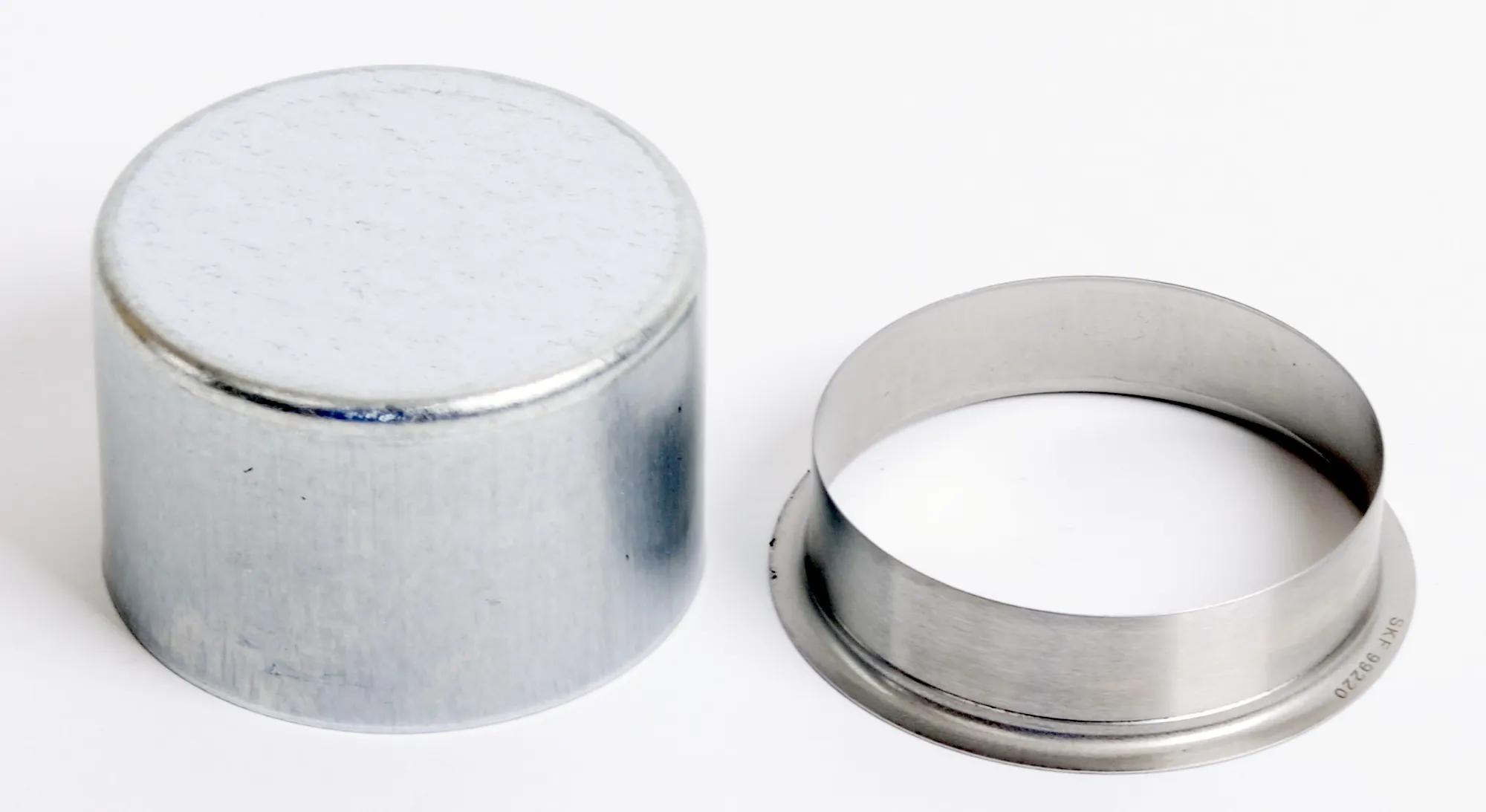

A/Trsax Output Shaft Speedi-Sleeve - Right
#SKF99220
Sommaire du produit
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Caractéristiques et avantages
Caractéristiques et avantages
SKF99220 - Documents de caractéristiques - A
SKF99220 - Documents de caractéristiques - B
SKF99220 - Documents de caractéristiques - C
SKF99220 - Documents de caractéristiques - D
SKF99220 - Documents de caractéristiques - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Spécifications
| Compatible avec le diamètre de l'arbre | 2.198 in. To 2.205 in. / 55.81 mm To 56.00 mm |
| Diamètre de bride | 2-17/32 in (6.43 cm) |
| Épaisseur | 1/2 in (1.27 cm) |
Interchanges et pièces équivalentes:
| 145899220 |
| CR99220 |
| 965899220 |
| 99220 |
| 992201 |
| 99220CHR |
| CHR99220 |
| N99220 |
| ZAR99220 |
| 27SR3516 |
| 4133516100 |
