Accuride Wheel Guard 3/4 in Thickness, Hub Piloted, 10 Bolt Holes, 11.25 in Bolt Circle Diameter
#ACC590-2
Product Overview

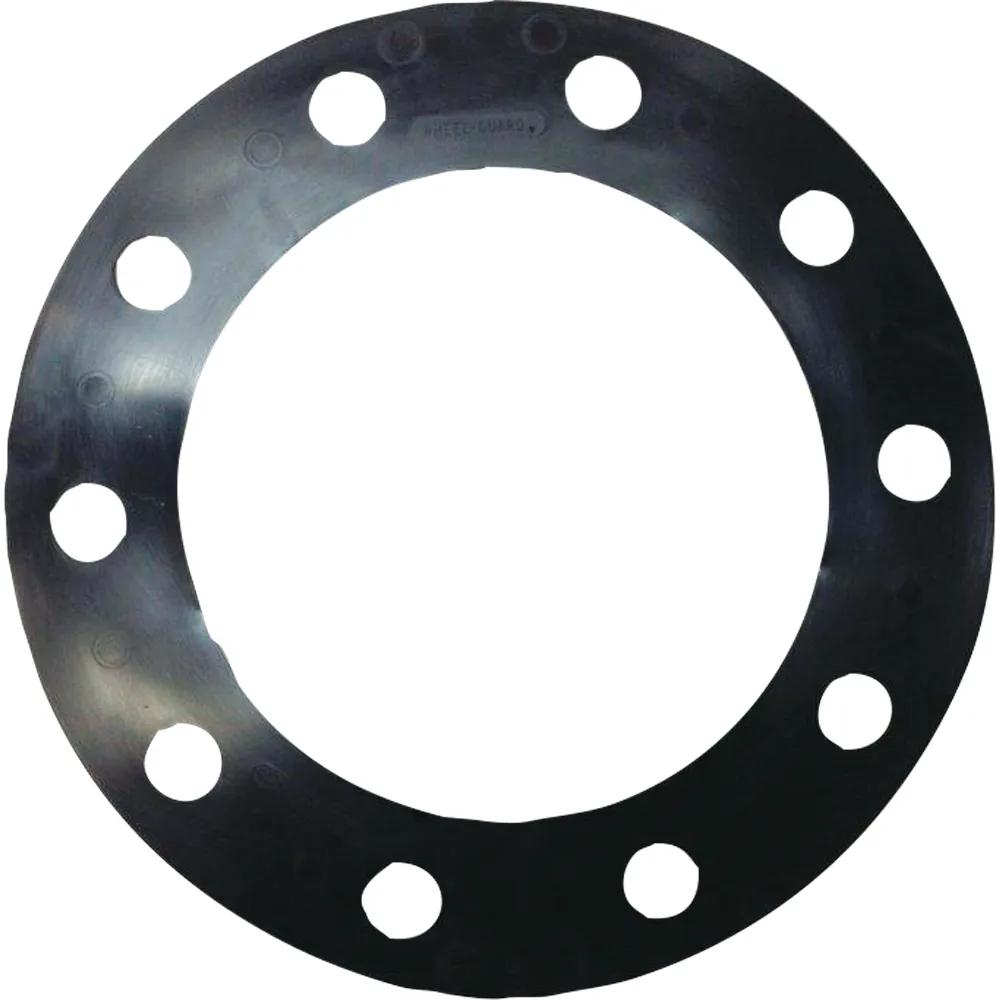

Wheel-guard® separator plates protect wheels from wear and preserve surface appearance on aluminum and steel wheels. Ideal for severe applications with excessive wear or corrosion, but not recommended for refuse, transit bus, or high heat applications.Wheel Guard, Hub Piloted, 11.25 in Bolt Circle Dia, 0.94 in Hole, 8.77 in ID, Stud Piloted Mounting, 10 Bolt Holes, 13.52 in OD, 0.035 in T, For On Highway, 3/4 in L, 3/4 in W
Features & Benefits
- Protects wheel from wear in field service
- Preserves surface appearance for aluminum and steel wheels
- Recommended for severe wear or corrosion conditions
- Not suitable for refuse, transit bus, or high heat applications
Specifications
| Application | On Highway |
| Bolt Circle Diameter | 11.25 in |
| Mounting | Stud-Piloted Wheels |
| Number of Bolt Holes | 10 |
| Type | Hub Piloted |
| Width | 3/4 in |
| Hole Size | 0.94 in |
| Inside Diameter | 8.77 in |
| Length | 3/4 in |
| Outside Diameter | 13.52 in |
| Thickness | 0.75 in |
| Product Category | Wheel Guard |
Interchanges & Equivalent parts:
| 4005902 |
| ACU5902 |
| U734005902 |
| HDN5902 |
| 5902 |
| 18-003-065 |
| G3644 |
| PA11676 |
| SLH18002002 |
