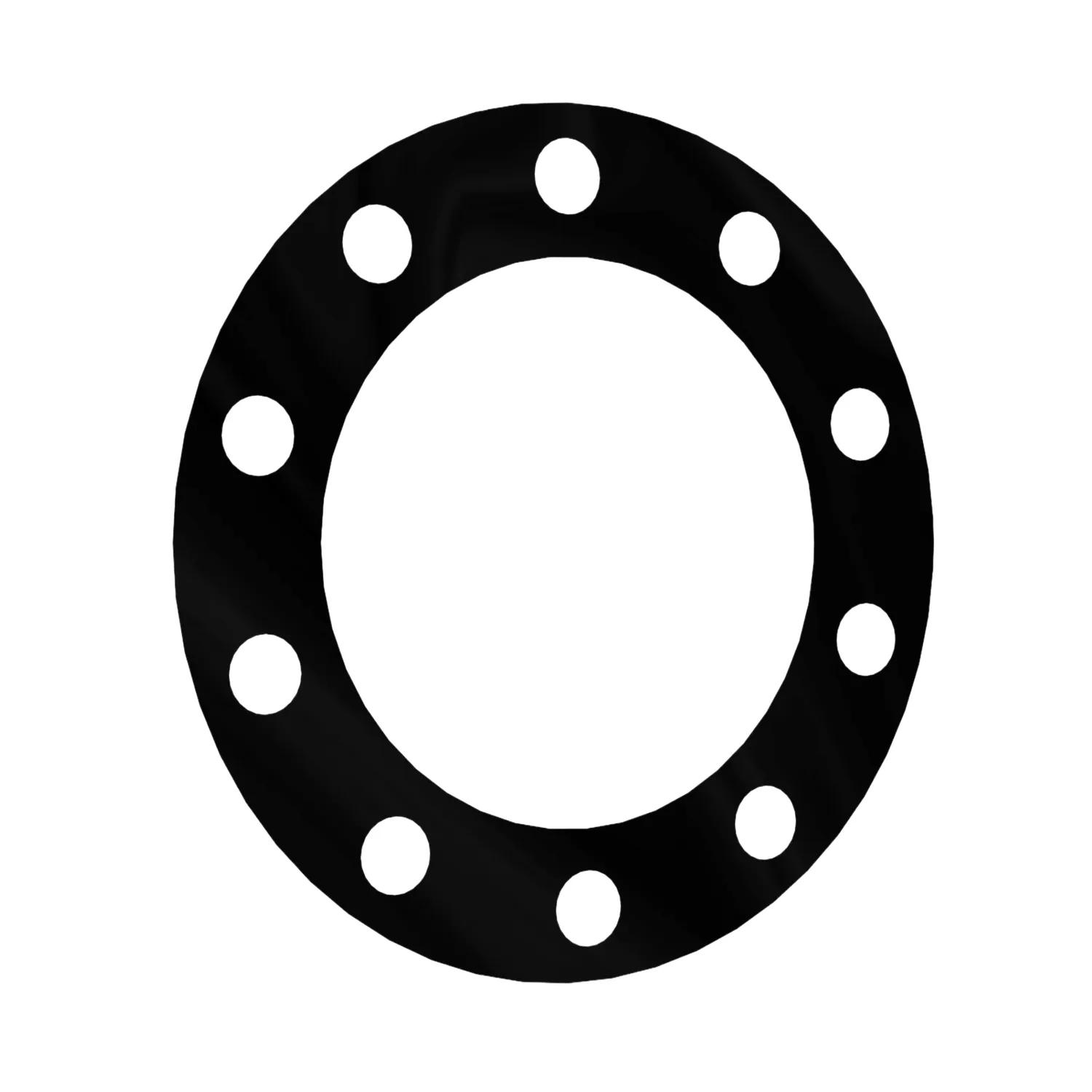

Accuride Wheel Guard for 22mm Stud Diameter, Hub Piloted, 10 Bolt Holes, 11-1/4 in Bolt Circle Diameter
#ACC590-3
Product Overview
Wheel-Guard® separator plates protect wheels from wear in field service and preserve the surface appearance of aluminum and steel wheels. Highly recommended for severe applications with excessive wear or corrosion. Not suitable for refuse, transit bus, or high heat applications.Wheel Guard, Hub Piloted, 285.75 mm Bolt Circle Dia, 1 in Hole, 8.77 in ID, Hub Piloted Mounting, 10 Bolt Holes, 13.52 in OD, 0.035 in T, For On Highway, 22 mm L, 22 mm W
Features & Benefits
- Protects wheel surface from wear and corrosion
- Recommended for severe service conditions
- Not for refuse or transit bus applications
- Hub piloted mounting for secure fit
Specifications
| Application | On Highway |
| Bolt Circle Diameter | 11-1/4 in |
| Mounting | Hub Piloted |
| Number of Bolt Holes | 10 |
| Type | Hub Piloted |
| Width | 22 mm |
| Hole Size | 1 in |
| Inside Diameter | 8.77 in |
| Length | 22 mm |
| Outside Diameter | 13.52 in |
| Thickness | 0.035 in |
| Product Category | Wheel Guard |
Interchanges & Equivalent parts:
| 2335901 |
| 4005903 |
| 5903 |
| ACU5903 |
| ALC011000 |
| U734005903 |
| HDN5903 |
| A5903 |
| ACC5903 |
| 18003035 |
| G3645 |
| MUCAS180001 |
| R18007001 |
| ROS18003035 |
