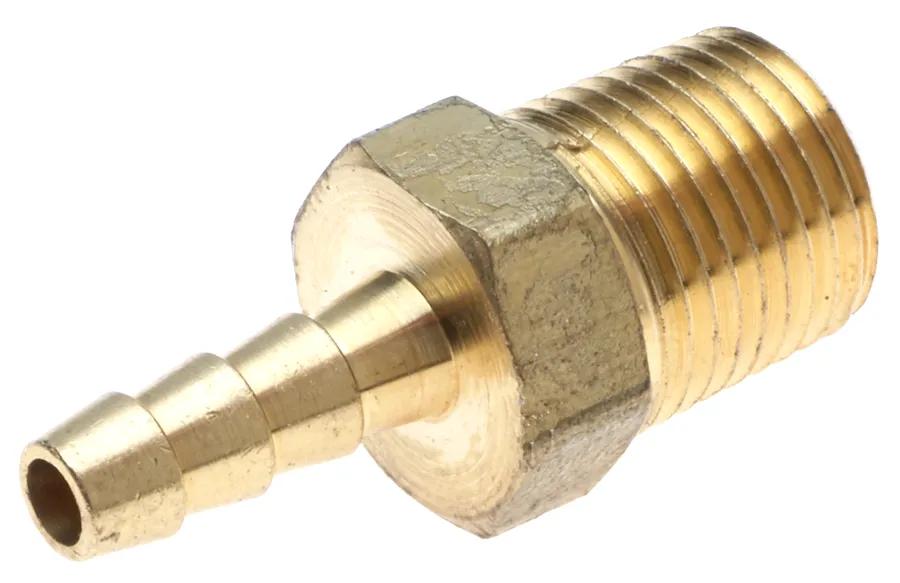

Adapter Coupling, 10BS-8MP
#GATG38100-1008
Product Overview
Recommended for Low Pressure Fuel, Oil, Compressed Air, Water & Cooling Lines. Typically Used in Heavy-Duty Truck, Construction, Industrial & Mobile Applications.
Features & Benefits
- Field Attachable & Reusable.
- Contact Gates to Verify Compliance to Desired Specifications & Suitability for Particular Applications.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- The One-Piece Fitting is Compact & Great for Use in Tight Spaces.
- An Economical Choice for General Purpose Fluid & Pneumatic Applications.
- Used w/ Low Pressure Multi-Purpose or General Purpose Rubber Hose & Thermoplastic Tubing.
Specifications
| Fits Hose Size | 5/8 in (1.6 cm) |
| Fixed or Swivel Type | Fixed |
| Industrial Description | 10BS-8MP |
| Inside Diameter | 5/8 in (1.6 cm) |
| Inside Diameter 1 (in) | 5/8 in (1.6 cm) |
| Material | 360 Brass |
| Pressure | 150 psi (10.34 bar) |
| Temperature | -40°F @ +160°F (-40°C @ +71°C) |
| Thread Type | Pipe Thread |
| Type | Single Bead Male Pipe 90 deg Block Cone Seat |
Interchanges & Equivalent parts:
| G38100-1008 |
| 725005565 |
