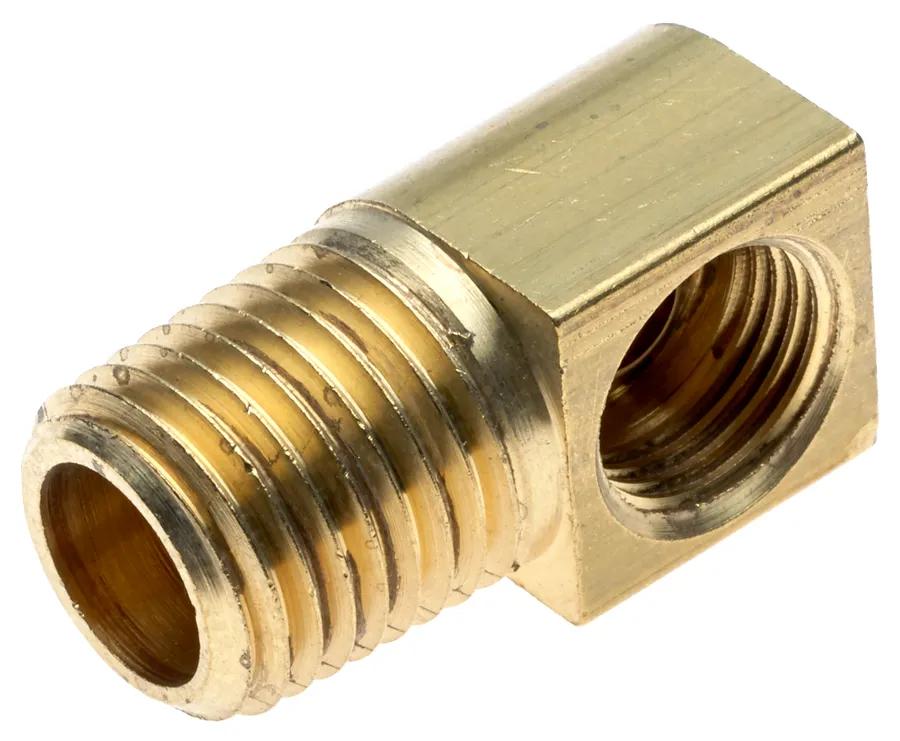

Adapter Fitting, 4MP-4FI90
#GATG60627-0404
Product Overview
Recommended for Hydraulic Brake, Fuel & Oil Lines, Refrigerant in Engine, Air Conditioning, Marine & Mobile Applications. Products for Use in LP & Natural Gas Applications Require Special Order.
Features & Benefits
- Caution: Do Not Over Torque or You May Damage the Connectors or Split the Tubing at the Flare.
- Tighter Tube Bends Can Be Achieved Using a Short Nut (Brass or Steel), Whereas a Long Nut is Recommended in Applications Where Excessive, High Vibration Exists.
- Meets Functional Requirements of SAE J512 & Specifications/Standards of ASA, ASME, SAE & MS (Military Standards). Underwriters Laboratories Listed (Available Special Order Only) for Fuel Equipment & Gas.
- An Economical & Reusable Solution That Can Be Field Installed. Threads & Seats Can Be Assembled & Disassembled for Long Service Life.
- Used w/ Copper, Brass, Aluminum & Steel Tubing That Can Be Flared.
Specifications
| Adapter Type | Inverted Flare |
| Angle | 90 deg |
| Industrial Description | 4MP-4FI90 |
| Material | 360 Brass |
| Pressure | 2000 psi (137.89 bar) |
| Temperature | -65°F @ +250°F (-54°C @ +121°C) |
| Type | Female Inverted Flare to Male Pipe - 90 deg |
Interchanges & Equivalent parts:
| G60627-0404 |
| 725011705 |
