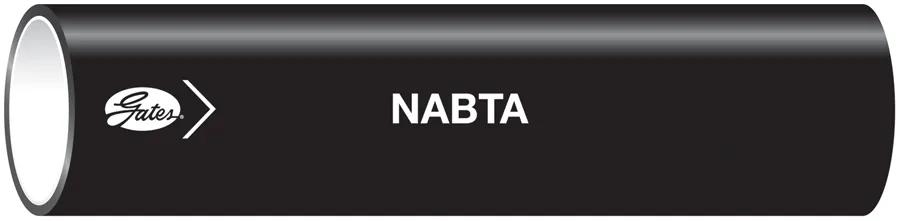

Air Brake Hose (D.O.T.), OD: 3/8 in, Black
#GATH30002-06
Product Overview
Recommended for Truck, Bus, Mobile Air Brake & Service Lines Where Heat & Battery Acids & Not Present. Conforms to SAE J844 Specifications. Meets D.O.T. FMVSS 106-74. Temperature Range: -40 Deg F - +200 Deg F (-40 Deg C - +93 Deg C).
Specifications
| Couleur | Noir |
| Recommandation d'accouplement | Gates DOT Compression, Gates DOT SureLok Couplings |
| Matériau du couvercle | Nylon |
| Description industrielle | 6NABTA X100FT |
| Longueur | 100 pi (30,48 m) |
| Pression maximale | 150 psi (10.34 bar) |
| Minimum Burst Pressure (PSI) | 1407 psi (97.01 bar) |
| Outside Diameter | 3/8 po (0,97 cm) |
| Product Type | Nylon Tubing Compression Nylon Air Brake Tubing |
| Radius | 1-1/2 in (3.81 cm) |
| Reinforcement | Type B - Reinforced w/ One Open Ply of Fibrous Nylon |
| Temperature Range | -40°F @ 200°F (-40°C @ 93°C) |
| Tube Description | Heat & Light Stabilized Seamless Extruded Nylon |
| Tube O.D. | 3/8 po (0,97 cm) |
| Type | Basse pression |
Interchanges & Equivalent parts:
| H30002-06 |
| 43270054 |
