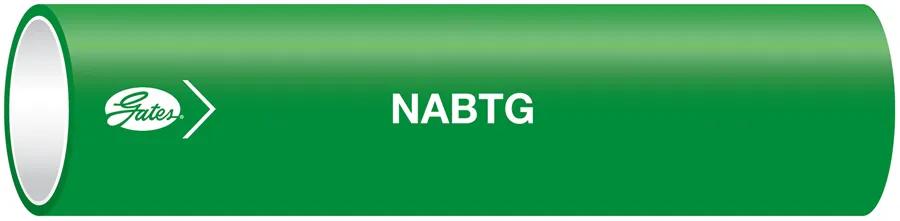

Air Brake Hose (D.O.T.), OD: 3/8 in, Green
#GATH30042-06
Product Overview
Recommended for Truck, Bus, Mobile Air Brake & Service Lines Where Heat & Battery Acids & Not Present. Conforms to SAE J844 Specifications. Meets D.O.T. FMVSS 106-74. Temperature Range: -40 Deg F - +200 Deg F (-40 Deg C - +93 Deg C).
Specifications
| Color | Green |
| Coupling Recommendation | Gates DOT Compression, Gates DOT SureLok Couplings |
| Cover Material | Nylon |
| Industrial Description | 6NABTG X100FT |
| Length | 100 ft (30.48 m) |
| Maximum Pressure | 150 psi (10.34 bar) |
| Minimum Burst Pressure (PSI) | 1407 psi (97.01 bar) |
| Outside Diameter | 3/8 in (0.97 cm) |
| Product Type | Nylon Tubing Compression Nylon Air Brake Tubing |
| Radius | 1-1/4 in (3.18 cm) |
| Reinforcement | Type B - Reinforced w/ One Open Ply of Fibrous Nylon |
| Temperature Range | -40°F @ 200°F (-40°C @ 93°C) |
| Tube Description | Heat & Light Stabilized Seamless Extruded Nylon |
| Tube O.D. | 3/8 in (0.97 cm) |
| Type | Low Pressure |
Interchanges & Equivalent parts:
| H30042-06 |
| 43270059 |
