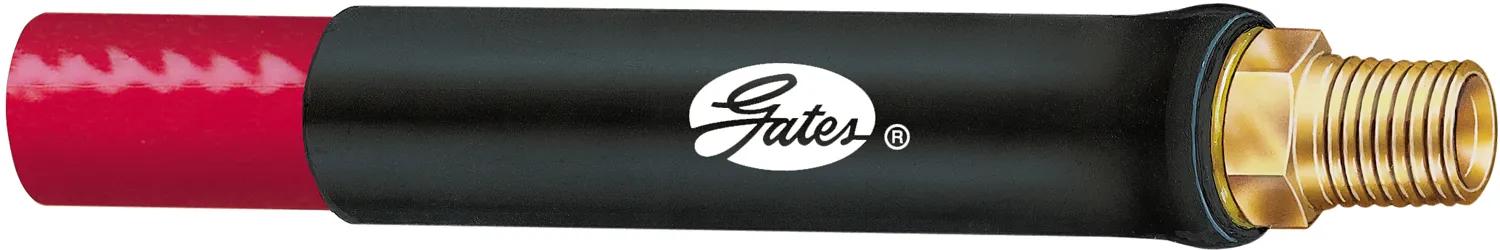

Air Brake Hose, Th: 1/2 in-14 NPT

#GAT27491

See More
See Less

Features & Benefits


  • Perforated EPDM red cover that resists ozone and abrasion
  • Bend restrictors for extended life
  • Factory assembled male couplings with 300 lb. minimum coupling pull
  • High strength reinforcement
  • High flexibility is easy on wrists
  • 27491 -8X25F SAFT STR

Specifications


Color Black
Coupling Recommendation MegaCrimp Couplings (G25) Section G, Use clamp over beaded nipple
Cover Material Synthetic Rubber
Cover Type Type A, Oil & Abrasion Resistant
Inside Diameter 1/2 in (1.27 cm)
Length 25 ft (7.62 m)
Material Rubber
Outside Diameter 27/32 in (2.13 cm)
Pressure 300 psi (20.68 bar)
Temperature Range -40°F @ 200°F (-40°C @ 93°C)
Thread 1/2 in-14 NPT
Tube Description Black, Specially Compounded, Synthetic Rubber (CPE - Type J)
Type Air Hose (Standard)
Weight 5.27 lb (2.39 kg)

Interchanges & Equivalent parts:


33024
65134
H272
80010
27491
