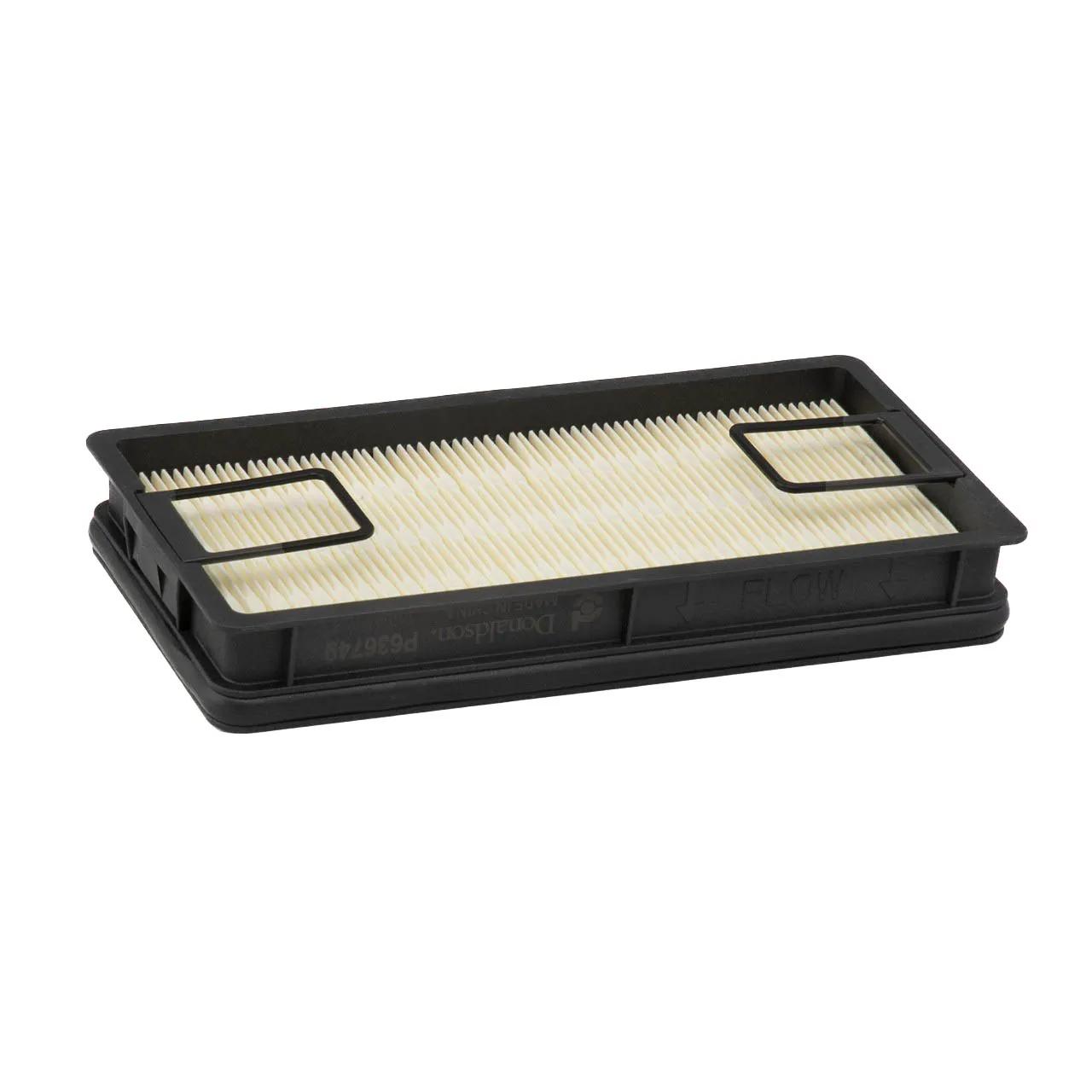

Air Filters L: 10,43 in
#DONP636749
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Efficiency Beta 20 (Micron) | 40 Micron |
| Height | 1.46 in (37.09 mm) |
| Length | 10.43 in (265 mm) |
| Outlet Diameter | 2.25 in (57.15 mm) |
| Primary Application | Schroeder 8Z10 |
| Restriction HR (Metric) | 127 MM H2O |
| Restriction LR (Metric) | 152 MM H2O |
| Restriction MR (Metric) | 203 MM H2O |
| Length Range | 10 to 10.99 in |
| Style | Panel |
| Type | Safety |
| Width | 5.4 in (137.2 mm) |
Interchanges & Equivalent parts:
| P636749 |
| PA31011 |
| SA16783 |
| 500861 |
| WA10861 |
| SA10861 |
| 7010031 |
| 274704 |
| 474M23 |
| 93764 |
